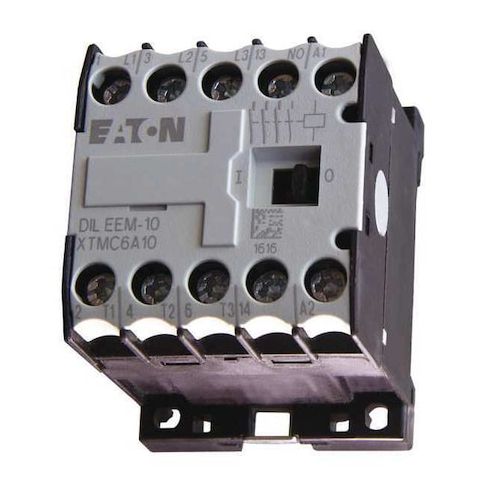

IEC Miniature Magnetic Contactor, 1NO, 12V AC, 3 P, Non-Reversing, Screw MPN:XTMC6A10R
Free Shipping
In Stock
The Eaton IEC Miniature Magnetic Contactor is a compact and reliable device designed for control panel applications. Its 3-pole, non-reversing design and 12V AC coil make it suitable for a wide range of uses, including industrial automation, HVAC systems, and lighting control. The device features a normally open auxiliary contact and is rated for use in environments with temperatures between -13°F and 122°F. With a mechanical lifespan of up to 10 million cycles, this contactor provides long-lasting performance and reliability. It can be mounted on DIN rails or panels, making it easy to integrate into existing systems.
Top product features:
- Non-Reversing Action
- Three Poles
- Normally Open Auxiliary Contact
Top product applications:
- Control Panel Applications
- Control Circuit Applications
- Industrial Automation Systems
The Eaton IEC Miniature Magnetic Contactor is a 3-pole, non-reversing device with a 12 V AC coil and one normally open auxiliary contact. It uses screw terminals and supports mounting on DIN rails or panels, rated for use in control panel applications within specified parameters.
Key features
- - Action: Non-Reversing
- - Poles: 3
- - Coil Voltage: 12V AC
- - Aux Contacts: 1NO (Includes one normally open auxiliary contact)
- - Surge suppression component: Included (specification of functionality only)
- - Terminals: Screw
- - Mounting Style: DIN Rail, Panel
- - Mounting Position: Vertical
- - Frame Size: A
- - Frequency: 50/60 Hz
- - Maximum Voltage Rating: 690V AC/DC
- - Enclosure: does not include an enclosure
- IP Rating: IP20 according to standard classifications
- - Includes Auxiliary Contacts: Yes
- - Full Load Amps: Inductive 6 A
- Resistive 20 A
- - Full Load Current: Inductive 6 A
- Resistive 20 A
- - Mechanical Durability: designed for a mechanical lifespan up to 10 million cycles under normal operating conditions
- - Dimensions (LxWxH): Depth 3.27 in
- Width 1.77 in
- Height 2.28 in
- - Operating Temperature: rated for operation within the specified temperature range of -13°F to 122°F
- - Phase: Three
- - Standards: CCC, CSA, EN/IEC 60947, UL Listed, VDE 0660
- - Mounting Hole Diameter: 0.16 in
- - Mounting Hole Distance (Height): 1.98 in
- (Width): 1.38 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 1.90
- Package Height: 2.10
- Package Weight: 0.40
