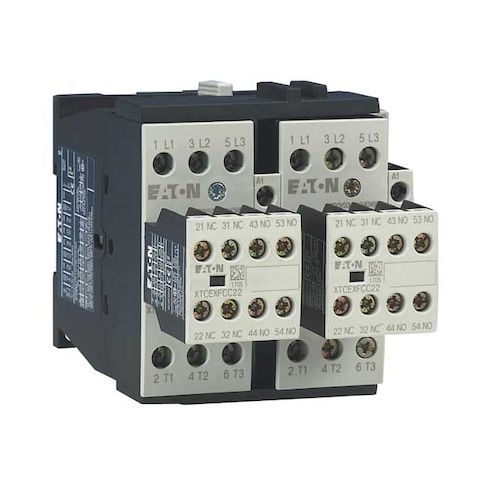

IEC Magnetic Contactor, 1NC/2NO, 24V AC, 3 P, Reversing, Screw MPN:XTCR018C21T

• The Eaton XT IEC contactor is an IEC magnetic contactor (electrically operated switching device) rated for operation within the specified IEC standards. It features a 24 V AC coil, reversing action, and three poles with screw terminals. The unit includes an embedded surge suppressor

• enclosure not provided, and is compatible with DIN Rail and panel mounting methods. It carries multiple certifications (UL Listed
• CSA Certified
• EN 60947
• IEC 60947
• RoHS
• CE Marked).

  Key features

• - Action: Reversing
• - Poles: 3
• - Coil voltage: 24 V AC
• - Amperage rating (full load): Inductive 18 A
• Resistive 40 A
• - Auxiliary contacts: 4 total
• Configuration 2NO/1NC
• Form 1NC/2NO
• - Contact configuration (main): 2 NO, 2 NO
• - Frame/Series/Code: Frame C
• Series XT
• - Type: Rated for operation at full voltage within specified parameters
• - Mounting: DIN Rail, Panel
• - Electrical connection: Screw terminals
• - Embedded surge suppressor: Yes
• - Enclosure/NEMA: does not include an enclosure
• rated IP20 for protection level (if applicable)
• - Certifications: UL Listed
• CSA Certified
• EN 60947
• IEC 60947
• RoHS
• CE Marked
• - Dimensions: 7.5 in W x 4.5 in H x 4.75 in D
• - Mounting hole details: Diameter 0.16 in
• vertical spacing 2.95 in
• horizontal spacing 1.77 in
• - Operating temperature: Max 122°F
• Min -13°F
