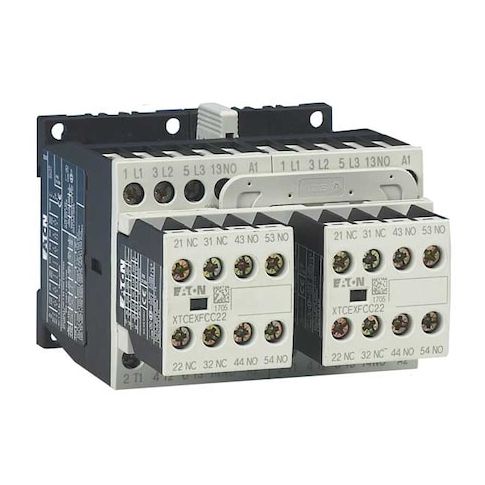

IEC Magnetic Contactor, 1NC/2NO, 480V AC, 3 P, Reversing, Screw MPN:XTCR012B21C
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient solution for a wide range of applications, including motor control and power distribution. With its 3-pole, reversing design and 480V AC coil, it is suitable for use in industrial settings where high voltage and current requirements are present. The contactor's open design and screw terminal connections make it easy to install and maintain, while its embedded surge suppressor protects against electrical surges. Ideal for use in IEC-compliant systems, this contactor is perfect for applications such as conveyor systems, pumps, and fans.
Top product features:
- The Eaton XT IEC Magnetic Contactor is a three-pole, reversing, electrically operated switch rated for use within IEC standards and specified voltage and current ranges.
- It features compatibility with standard wiring methods for easy installation.
- It has an open design suitable for intended application environments.
Top product applications:
- General Lighting Control
- Motor Control
- Power Distribution
The Eaton XT IEC Magnetic Contactor is a three-pole, reversing, electrically operated switch rated for use within IEC standards and specified voltage and current ranges. It is equipped with a 480 V AC coil and rated for operation within specified electrical parameters. The device features compatibility with standard wiring methods
- mounting options include DIN Rail or panel as per installation guidelines. It has an open design suitable for intended application environments. Designed for switching applications within the scope of IEC standards.
- Type: Full voltage reversing contactor
- - Action: Reversing (Reversing)
- - Poles: 3
- - Series/Frame: XT
- Frame B
- - Coil voltage: 480 V AC
- - Amperage rating: 12 A
- - Auxiliary contacts: 4 total
- configuration 2NO/1NC
- form 1NC/2NO
- - Embedded surge suppressor: Yes
- - Electrical connection: Screw terminals
- - Mounting style: DIN Rail, Panel
- - Enclosure: Open design
- - IP rating: IP20
- - Certifications/Standards: UL Listed
- CSA Certified
- EN 60947
- IEC 60947
- RoHS
- - Markings: CE Marked
- - Product name: Eaton XT IEC contactor
Additional Information
- Country of Origin: RO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.70
- Package Width: 5.40
- Package Height: 5.30
- Package Weight: 1.50
