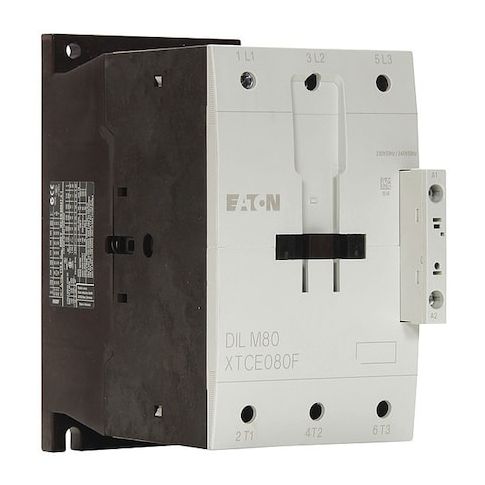

IEC Magnetic Contactor, No Auxiliary Contacts, 120V AC, 3 P, Non-Reversing, Screw MPN:XTCE080F00A

• The Eaton XT IEC contactor is an IEC magnetic contactor intended for switching power circuits in control panels. It is a 3-pole, non-reversing device with a 120 V AC coil, screw terminals, and includes an embedded surge suppressor

• does not include auxiliary contacts. It is part of the XT series, frame size F, rated for operation within the specified voltage range (up to 690 V AC).

  - Poles: 3

• - Action: Non-Reversing
• - Coil Voltage: 120 V AC
• - Amperage Rating: Full Load Amps – Inductive 80 A
• Resistive 110 A
• - Auxiliary Contacts: No
• - Frame/Series: XT
• Frame F
• - Electrical Connection: Screw
• - Maximum Voltage Rating: 690 V AC
• - IP Rating: IP20
• - Embedded Surge Suppressor: Yes
• - Mounting Style: DIN Rail, Panel
• - Enclosure: No Enclosure
• - Response Times: Response times are specified as less than the listed durations under standard test conditions.
• - Certifications/Standards: UL Listed
• CSA Certified
• IEC 60947
• EN 60947
• - Compliance: CE Marked
• RoHS
• - Mechanical Durability: 10,000,000 cycles
• - Electrical Operating Durability: 300 (AC-4 400V Ie)
• 800 (AC-1 400V Ie)
• 800 (AC-3 400V Ie)
