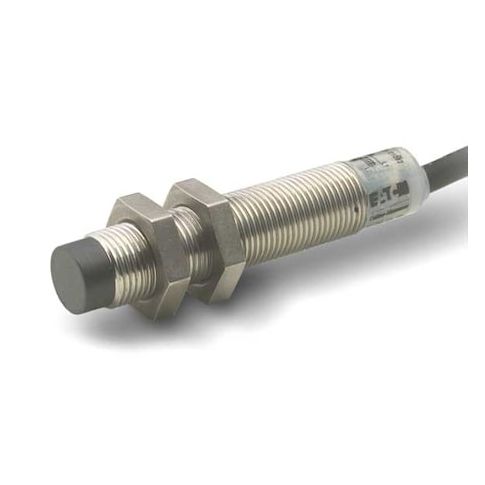

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded MPN:E57-12LE10-B
Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded
The Eaton Inductive Cylindrical Proximity Sensor is a reliable and versatile solution for detecting objects in various environments. Its stainless steel construction and IP67/IP69K rating make it suitable for use in harsh conditions, such as food processing and pharmaceutical applications. With a maximum detecting distance of 10mm and a frequency of 800Hz, this sensor provides accurate and efficient object detection. Its 2m cable and 3-wire PNP output circuit make it easy to integrate into existing systems. Ideal for use in machinery, automation, and industrial settings, this sensor offers a cost-effective and durable solution for a range of applications.
Top product features:
- Cylindrical shape allows for easy mounting and installation in tight spaces.
- Detects objects up to 10 mm away with a high degree of accuracy.
- Operates at a frequency of 800 Hz, providing a reliable and consistent output signal.
Top product applications:
- Automotive Industry: The inductive proximity sensor can be used to detect the presence of metal objects or parts in automotive manufacturing processes, such as detecting the presence of a car door or trunk lid.
- Industrial Automation: The sensor can be used in industrial automation applications to detect the presence of metal objects or parts, such as detecting the presence of a metal sheet or a robotic arm.
- Medical Equipment: The sensor can be used in medical equipment applications, such as detecting the presence of metal surgical instruments or detecting the presence of a patient's metal implant.
Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 6 to 48V DC, Unshielded, Proximity Sensor Operating Frequency 800 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 10 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 73 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 500mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 16 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 1.90
- Package Height: 6.10
- Package Weight: 0.27
