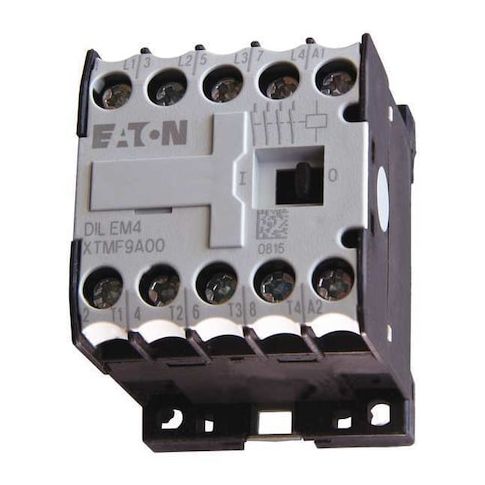

IEC Miniature Magnetic Contactor, No Auxiliary Contacts, 480V AC, 4 P, Non-Reversing, Screw MPN:XTMF9A00C

• The Eaton XT IEC Miniature Magnetic Contactor is a compact, electrically operated switching device used to control lower-power circuits in IEC-standard systems. It is a 4-pole, non-reversing contactor with a 480 V AC coil and screw terminals, and it has no auxiliary contacts. The unit supports vertical mounting on DIN rails or panels without enclosures

• it incorporates a surge suppression feature
• suitable for three-phase systems as per specifications.

  - Poles: 4

• - Action / Reversing: Non-Reversing
• - Coil voltage: 480 V AC
• - Frequency: 50/60 Hz
• - Contact configuration: 0 NO, 0 NC
• - Auxiliary contacts: No Auxiliary Contacts
• - Amperage rating: 8.80 A
• - Full Load Amps: Inductive 9 A / Resistive 20 A
• - Surge suppression component: Yes
• - Maximum voltage rating: 690 V AC/DC
• - Frame / Series: Frame A
• Series XT
• - Mounting style / position: DIN Rail, Panel
• Vertical
• - Electrical connection: Screw
• - Enclosure: No Enclosure
• IP20
• - Dimensions (Width × Height × Depth): 1.77 in × 1.50 in × 2.05 in
• - Certifications: UL Listed
• CSA Certified
• EN 60947
• IEC 60947
• - Mechanical durability rating: 10,000,000 cycles under specified testing conditions
• - Temperature range: -13°F to 122°F
• - Phase: Three
• - Product name: Eaton XT IEC mini contactor
