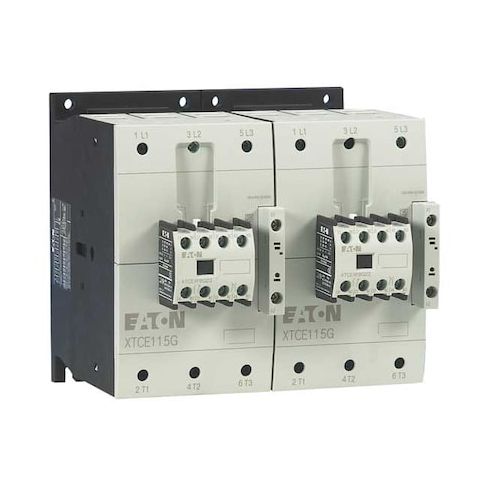

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Reversing, Screw MPN:XTCR150G11T
Free Shipping
In Stock
The Eaton IEC Magnetic Contactor is a reliable and efficient solution for a wide range of applications, including industrial automation, HVAC systems, and renewable energy. This 3-pole reversing contactor operates on 24V AC and features screw-terminal connections, making it easy to integrate into your system. With its embedded surge suppressor and compact design, it provides reliable operation and protection from electrical surges. Suitable for DIN Rail or Panel mounting, this contactor is compatible with XT series and frame size G, making it a versatile choice for various applications, including motor control and power distribution.
Top product features:
- Reversing action allows for directional control of connected loads
- Embedded surge suppressor protects against electrical spikes
- Screw-terminal connections simplify wiring and installation
Top product applications:
- Automation Systems
- Industrial Control Panels
- HVAC and Refrigeration Systems
The Eaton IEC Magnetic Contactor is a 3-pole reversing contactor with a 24 V AC coil. It operates via an electromagnetic mechanism within specified parameters, includes screw-terminal connections as specified, and is rated for operation with DIN Rail or Panel mounting options. The unit includes an embedded surge suppressor
- it does not include an enclosure
- compatible with XT series and frame size G.
Key features
- - Action: Reversing
- Reversing: Yes
- Phase: Three
- Number of Poles: 3
- - Coil Voltage: 24 V AC
- Frequency: 50/60 Hz
- - Embedded Surge Suppressor: Yes
- - Auxiliary Contacts: 2 total (1NO/1NC
- 1NC/1NO)
- - Terminal Connection Type: Screw
- - Mounting Style: DIN Rail, Panel
- - Frame Size/Series: Frame G
- Series XT
- - Enclosure: No Enclosure
- IP Rating: IP20
- - Standards: CE, CSA, EN/IEC 60947, RoHS, UL Listed
- - Overall Dimensions: Width 7.72 in
- Height 12.80 in
- Depth 7.24 in
- - Operating Temperature Range (Max): 122 °F
- (Min): -13 °F
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.80
- Package Width: 11.00
- Package Height: 8.00
- Package Weight: 15.05
