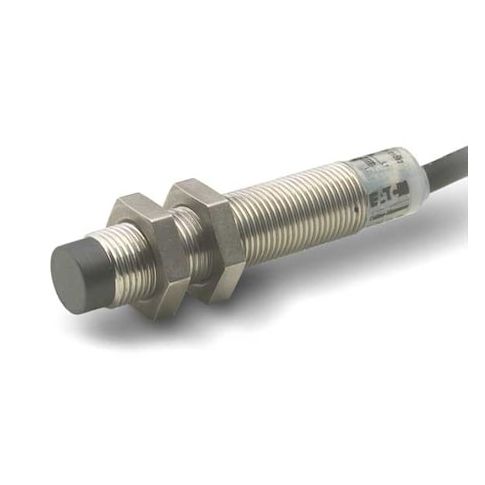

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded MPN:E57-12LE10-B1
Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded
This Eaton inductive proximity sensor is designed for use in various industrial applications, including automation, robotics, and material handling. Its stainless steel construction and IP67/IP69K rating ensure durability and resistance to harsh environments. The sensor's 800 Hz operating frequency and 10 mm detecting distance provide accurate detection of metal objects. Its 3-wire PNP output and 500mA current load make it suitable for a wide range of applications. The sensor's compact size and long 2m cable make it easy to integrate into existing systems. Ideal for use in food processing, pharmaceutical, and other industries where hygiene and reliability are critical.
Top product features:
- Cylindrical shape for easy installation in tight spaces
- Inductive proximity sensing for non-contact detection
- Operating frequency of 800 Hz for reliable detection over a wide range
Top product applications:
- Automotive Industry
- Material Handling Equipment
- Medical Device Manufacturing
Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 6 to 48V DC, Unshielded, Proximity Sensor Operating Frequency 800 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 10 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 73 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 500mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 1.80
- Package Height: 6.30
- Package Weight: 0.25
Product info last updated on January 13, 2026 12:28pm UTC
Category: Industrial Electrical Controls and Automation
