IEC Control Relay2NO/2NC240VAC16A MPN:XTRE10B22B
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2331217
IEC Control Relay2NO/2NC240VAC16A

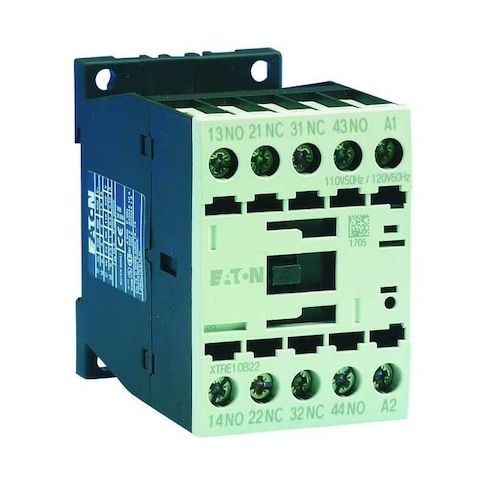

The Eaton IEC Control Relay is a reliable and efficient solution for controlling high-voltage applications. With a current rating of 16A and a contact rating of 6A @ 240V AC, it can handle demanding loads. Its compact design, measuring 45mm in frame size, makes it ideal for DIN rail mounting in industrial control panels. The relay's 2NO/2NC contacts ensure smooth operation and high reliability. Suitable for use in a variety of applications, including industrial automation, HVAC, and power distribution systems, this control relay provides a robust and long-lasting solution for controlling high-voltage equipment.
Top product features:
- 2NO/2NC contact form provides two normally open and two normally closed contacts for versatile switching applications.
- Screw terminal electrical connection allows for easy and secure wiring.
- DIN rail mounting style enables easy installation and organization in control panels.
Top product applications:
- Industrial Automation Systems
- Machine Control Panels
- Building Automation Systems
IEC Control Relay, Current Rating 10 A, Contact Form 2NO/2NC, Contact Rating (DC) 10 A @ 24V, Coil Voltage 220/240V AC, Contact Rating (AC) 6 A @ 240V, Relay Style IEC, Electrical Connection Screw Terminal, Mounting Style DIN Rail, Power Consumption 3.3 VA, IP Rating IP20, Frame Size 45 mm, NEMA Size Not Applicable, Compatible with Series XTRE Control Relays, Maximum Operating Temperature 140 Degrees F, Frequency 50/60 Hz, Body Depth 2.97 in, Body Height 2 in, Body Width 1.77 in
Additional Information
- Country of Origin: RO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.80
- Package Width: 1.90
- Package Height: 3.10
- Package Weight: 0.55
Product info last updated on January 13, 2026 12:28pm UTC
Category: Industrial Electrical Controls and Automation
