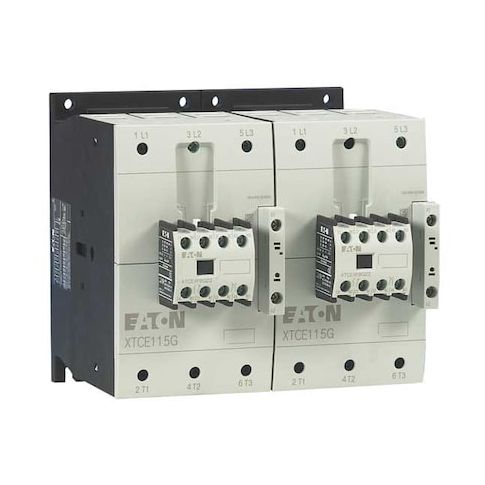

IEC Magnetic Contactor, 1NC/1NO, 240V AC, 3 P, Reversing, Screw MPN:XTCR150G11B

• The Eaton IEC Magnetic Contactor is a three-pole, electrically operated switch rated for controlling power circuits within specified parameters. It uses a 240 V AC coil and screw terminal connections, with two auxiliary contacts configured as 1NO/1NC. This unit belongs to the XT series with Frame G size and is intended for mounting on DIN rail or panel

• enclosure requirements depend on application.

  - Action: Reversing

• - Poles: 3
• - Coil voltage: 240 V AC
• - Auxiliary contacts: 2 (1NO/1NC)
• - Embedded surge suppressor: Yes
• - Enclosure: No Enclosure
• IP20
• - Mounting style: DIN Rail, Panel
• - Frame/Series: Frame G
• XT
• - Terminal connection: Screw
• - Frequency: 50/60 Hz
• - Standards: CE, CSA, EN/IEC 60947, RoHS, UL Listed
• - Full Load Amps: Inductive 150 A
• Resistive 190 A
• - HP ratings: 1-Phase 120V: 15 hp
• 1-Phase 240V: 30 hp
• 3-Phase 208V: 40 hp
• 3-Phase 240V: 60 hp
• 3-Phase 480V: 100 hp
• 3-Phase 600V: 100 hp
• - Dimensions: Width 7.72 in
• Height 12.80 in
• Depth 7.24 in
• - Mounting hole diameter: 0.27 in
• Hole spacing (Height x Width): 11.77 in x 6.97 in
