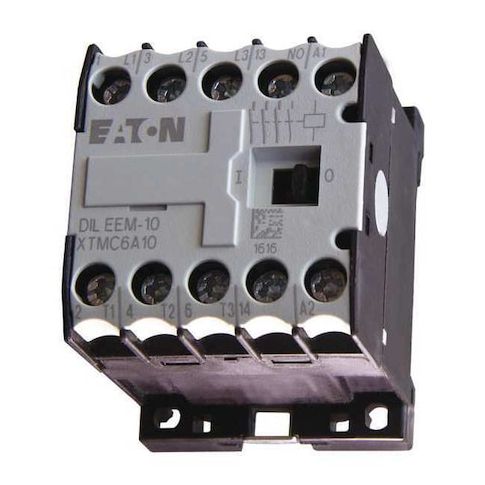

IEC Miniature Magnetic Contactor, 1NO, 208V AC, 3 P, Non-Reversing, Screw MPN:XTMC6A10E
Free Shipping
In Stock
The Eaton IEC Miniature Magnetic Contactor is a reliable and compact solution for controlling circuits in IEC-standard control panels. With a 208V AC coil and three-pole design, it's ideal for use in industrial applications such as machinery, conveyor systems, and HVAC control. The non-reversing action and embedded surge suppression components ensure safe and efficient operation. Its compact size and screw terminal connections make it easy to install and integrate into existing control panels. With a high mechanical durability of 10,000,000 cycles, this contactor is perfect for applications where reliability and durability are paramount.
Top product features:
- Non-Reversing action
- Three-pole design
- Screw terminal connections
Top product applications:
- Control circuits in IEC-standard control panels
- Automation and control systems in industrial settings
- Relay-based control systems in electrical distribution panels
The Eaton IEC Miniature Magnetic Contactor is a compact, three-pole, non-reversing, coil-operated switch rated for controlling circuits within specified power ranges in IEC-standard control panels. Energized by a 208 V AC coil, it features one auxiliary contact (normally open) and utilizes screw terminal connections. It features Frame A (XT series) and is compatible with DIN Rail or Panel mounting
- enclosure rated IP20
- includes embedded surge suppression components.
Key features
- - Action: Non-Reversing
- - Poles: 3
- - Auxiliary Contacts: 1 NO
- - Coil Voltage: 208 V AC
- - Frame Size / Series: Frame A / XT
- - Mounting Style: DIN Rail, Panel
- - Mounting Position: Vertical
- - Terminal Connection Type: Screw
- - Enclosure / IP Rating: IP20
- - Embedded Surge Suppressor: Yes
- - Maximum Voltage Rating: 690 V AC/DC
- - Frequency: 60 Hz
- - Full Load Amps (Inductive / Resistive): 6 A / 20 A
- - Mechanical Durability: 10,000,000 cycles
- - Dimensions: Width 1.77 in
- Height 2.28 in
- Depth 3.27 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 1.90
- Package Height: 2.20
- Package Weight: 0.40
