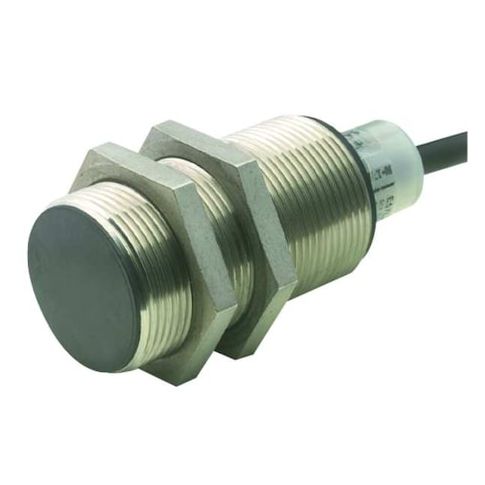

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Shielded MPN:E57-30LE22-B
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Shielded
Eaton's Cylindrical Inductive Proximity Sensor is a reliable and accurate solution for detecting objects in industrial settings. With a stainless steel construction and IP67/IP69K rating, it withstands harsh environments and extreme temperatures. The sensor's 3-wire PNP output and 300 Hz operating frequency ensure precise detection and minimal interference. Its compact design and 22mm detecting distance make it ideal for use in applications such as material handling, packaging, and conveyor systems. The sensor's 6-48V DC power requirement and 500mA current load make it easy to integrate into existing systems, providing a cost-effective and efficient solution for a wide range of industrial applications.
Top product features:
- Cylindrical shape allows for easy mounting in tight spaces
- Inductive technology enables detection of metal objects without physical contact
- Shielding reduces electromagnetic interference and increases sensor reliability
Top product applications:
- Automotive Parts Manufacturing
- Industrial Automation Systems
- Medical Device Assembly
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 6 to 48V DC, Semi-Shielded, Proximity Sensor Operating Frequency 300 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 22 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 68 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 500mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 2.30
- Package Height: 6.60
- Package Weight: 0.55
Product info last updated on January 13, 2026 12:52pm UTC
Category: Industrial Electrical Controls and Automation
