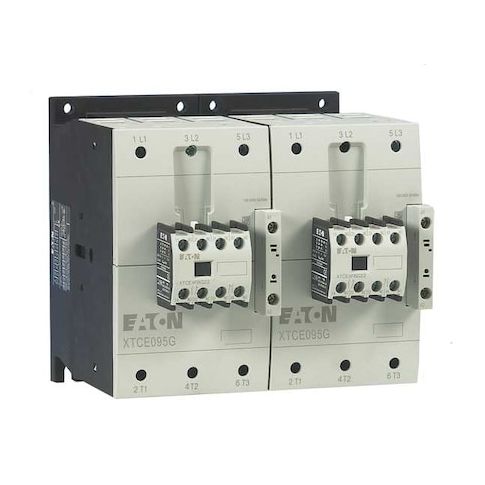

IEC Magnetic Contactor, 1NC/1NO, 240V AC, 3 P, Reversing, Screw MPN:XTCR095F11B

• The Eaton XT IEC contactor is an IEC magnetic contactor (3-pole) with reversing action and a 240 V AC coil. It operates by switching power circuits through electromagnetic actuation of contacts. This unit is rated for 95 A full-load current and includes two auxiliary contacts (1 NO / 1 NC). It uses screw terminals, supports DIN Rail or Panel mounting, and includes an embedded surge suppressor. The enclosure has an IP20 rating

• it belongs to the XT series with frame size F and a full-voltage reversing configuration.

  - Product Name: Eaton XT IEC contactor

• - Type: IEC Magnetic Contactor
• - Action: Reversing
• - Poles: 3
• - Coil Voltage: 240 V AC
• - Amperage Rating: 95 A
• - Auxiliary Contacts: 2 (1 NO / 1 NC)
• - Contact Configuration: 1 NO, 1 NC
• - Embedded Surge Suppressor: Yes
• - Mounting Style: DIN Rail, Panel
• - Electrical Connection: Screw Terminals
• - Frame Size / Series: Frame F
• Series XT
• - Standards / Certifications: CE Marked
• EN 60947
• IEC 60947
• UL Listed
• CSA Certified
• RoHS
• - Enclosure: The enclosure has an IP20 rating
• it belongs to the XT series with frame size F and a full-voltage reversing configuration.
• - IP Rating: IP20
• - Operating Temperatures: -13 to 122 Degrees F
• - Frequency: 50/60 Hz
