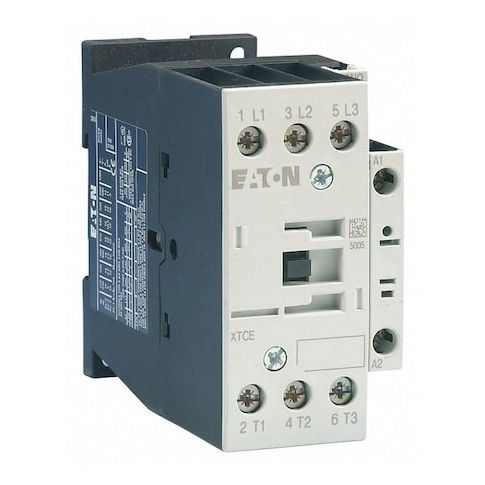

IEC Magnetic Contactor, 1NC, 208V AC, 3 P, Non-Reversing, Screw MPN:XTCE025C01E
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient solution for various industrial applications. Suitable for indoor use, it features a 208V AC coil and 3-pole design with screw terminal connections. The contactor includes one auxiliary contact (1NC) and is compatible with DIN rail or panel mounting methods. Its mechanical durability is rated at approximately 10,000,000 cycles, and it meets various certifications, including EN 60947, CSA Certified, IEC 60947, UL Listed, CE Marked, and RoHS. Ideal for use in control circuits, the Eaton XT IEC Magnetic Contactor provides reliable switching and is suitable for a wide range of applications, including HVAC, manufacturing, and power distribution.
Top product features:
- IEC Magnetic Contactor, 1NC, 208V AC, 3 P, Non-Reversing, Screw from Eaton
- The contactor features screw terminal connections for easy electrical connection.
- The contactor includes one auxiliary contact (1NC) for additional control functionality.
Top product applications:
- Industrial Automation Systems
- Control Panels for Machines and Equipment
- Motor Control Centers
The Eaton XT IEC contactor is an IEC magnetic contactor (Frame C) with 3 poles and a 208 V AC coil. It features screw terminal connections and includes one auxiliary contact (1NC).
- Rated for operation at specified coil voltage of 208 V AC.
- - Includes auxiliary contacts as specified.
- - Electrical connection via screw terminals.
- - Compatible with DIN rail or panel mounting methods.
- - Designed for indoor use with IP20 enclosure rating.
- - Suitable for operation at the specified frequency of approximately 60 Hz.
- - Rated to withstand voltages up to the specified maximum voltage rating (690 V AC).
- - Mechanical durability rated at approximately 10,000,000 cycles under normal conditions.
- - Electrical Operating Durability: 300 (AC-4 400V Ie)
- 800 (AC-1 400V Ie)
- 800 (AC-3 400V Ie)
- - Certifications/Compliance: EN 60947
- CSA Certified
- IEC 60947
- UL Listed
- CE Marked
- RoHS
Additional Information
- Country of Origin: RO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 3.50
- Package Height: 1.90
- Package Weight: 1.00
