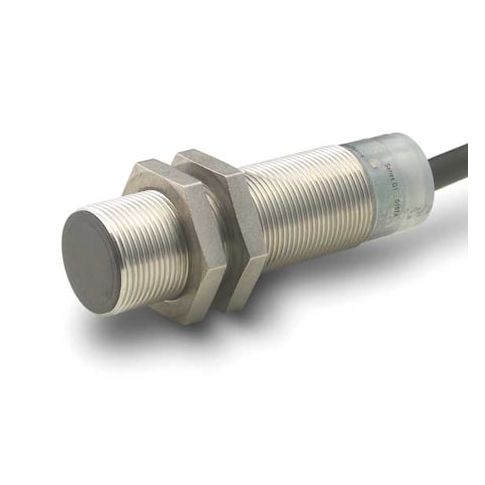

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, M12, 3 Wires, Semi-Shielded MPN:E57-18LE12-C1D
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, M12, 3 Wires, Semi-Shielded
This inductive proximity sensor is a reliable and versatile solution for detecting objects in a variety of applications. Its cylindrical design and stainless steel construction make it ideal for use in harsh environments, such as food processing, pharmaceutical manufacturing, and chemical plants. With a detection distance of 12 mm and a frequency of 500 Hz, it can accurately detect objects and provide a 3-wire NPN output. Its compact size and semi-shielded design make it easy to integrate into existing systems, providing a high level of accuracy and reliability in applications such as automation, robotics, and quality control.
Top product features:
- Cylindrical shape allows for easy integration into various applications
- Semi-shielded design provides protection from external electromagnetic interference
- Detects objects at a maximum distance of 12 mm with a 500 Hz operating frequency
Top product applications:
- Automotive Industry
- Industrial Automation
- Food and Beverage Processing
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 6 to 48V DC, Semi-Shielded, Proximity Sensor Operating Frequency 500 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 12 mm, Proximity Sensor Electrical Connection 4 Pin Micro DC Connector, Output Mode NC, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 69 mm, Operating Temp. Range -13 Degrees to 158 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.70
- Package Height: 3.30
- Package Weight: 0.15
Product info last updated on January 13, 2026 12:43pm UTC
Category: Industrial Electrical Controls and Automation
