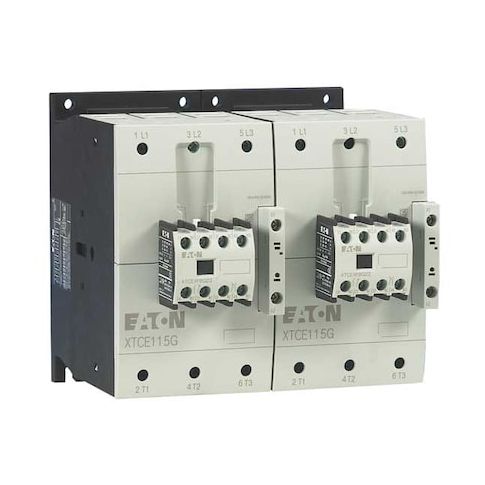

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Reversing, Screw MPN:XTCR170G11A
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a versatile and reliable solution for a variety of applications. This 3-pole magnetic switch can reverse operation within specified parameters, making it ideal for use in systems where direction of operation needs to be changed. With a 120V AC coil and 1 normally open and 1 normally closed auxiliary contact, it provides flexibility and control. Suitable for use in DIN Rail or Panel mounting, this contactor is perfect for industrial automation, power distribution, and control systems where reliability and efficiency are crucial. Its compact design and easy installation make it a great addition to any system.
Top product features:
- Capable of reversing operation within specified parameters
- Provides 1 normally open and 1 normally closed auxiliary contact
- Uses screw terminals for connections
Top product applications:
- Motor control circuits
- Industrial control systems
- Power distribution systems
The Eaton XT IEC Magnetic Contactor is a 3-pole IEC magnetic switch capable of reversing operation within specified parameters with a 120 V AC coil. It provides 1 normally open and 1 normally closed auxiliary contact (2 total) and uses screw terminals. The unit is designed for DIN Rail or Panel mounting, has no enclosure, and is identified as Frame Size G.
- Action: Capable of reversing operation within specified parameters
- - Coil Voltage: 120 V AC
- - Poles: 3
- - Auxiliary Contacts: 2 total (1NO/1NC)
- - Embedded Surge Suppressor: Yes
- - Mounting: DIN Rail, Panel
- - Terminal Connection: Screw
- - Enclosure: No Enclosure
- - IP Rating: IP20
- - Frame: G
- - Frequency: 50/60 Hz
- - Full Load Amps: Inductive 170 A
- Resistive 275 A
- - Certifications: CSA Certified
- IEC 60947
- EN 60947
- UL Listed
- - Standards: CE
- CSA
- EN 60947
- IEC 60947
- RoHS
- UL Listed
- - Type: Full voltage capable of reversing operation within specified parameters contactor
- - Series: XT
- - Reversing Capability: Capable of reversing operation within specified parameters
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.60
- Package Width: 11.10
- Package Height: 8.00
- Package Weight: 15.18
