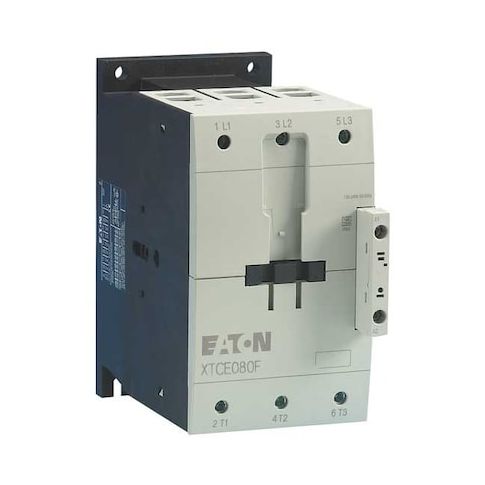

The Eaton XT IEC contactor is a reliable and efficient switching solution for a wide range of applications. Designed for use in industrial control systems, it provides a safe and reliable means of switching power within specified parameters. With a 208V AC coil and screw terminals, it is easy to install and integrate into existing systems. The XT series contactor is ideal for use in applications such as HVAC, conveyor systems, and machinery control, where high reliability and efficiency are critical. Its non-reversing design and IP20 rating ensure safe and reliable operation in harsh environments.
Top product features:
Switches power within specified parameters
Has a 3-pole, non-reversing design
Rated for a maximum continuous current of 95A under specified conditions
The Eaton XT IEC contactor is an IEC magnetic contactor rated for switching power within specified parameters. It is a 3-pole, non-reversing device with a 208V AC coil and screw terminals, and it does not include auxiliary contacts. It is part of the XT series (Frame F) and is compatible with standard enclosures (if applicable) or as specified by manufacturer standards.
- Amperage rating: rated for a maximum continuous current of 95A under specified conditions
- Coil Voltage / Coil Volts: designed for operation at the specified coil voltage range (e.g., 208V AC)
- Aux. Contact Configuration: does not include auxiliary contacts as part of its configuration
- Auxiliary Contact Form: Does not include auxiliary contacts
- Certifications: Conforms to relevant safety and performance standards, subject to proper installation and use
- Contact Configuration: has no auxiliary contact configurations included in this product model
- Contactor Style: conforms to IEC standards for magnetic contactors when installed properly within system specifications
- Frame / Series / Code: part of the XT series (Frame F), as designated by manufacturer specifications
- Frame Size: F
- Frequency: rated for operation at nominal frequency of 60 Hz within specified limits
- Frequency Rating: rated for operation at nominal frequency of 60 Hz within specified limits
- Full Load Amps - Inductive: rated for a maximum inductive load current of up to 95A under test conditions
- Full Load Amps - Resistive: 130 A
- HP @ 3 Phase - 208V: 25 hp
- HP @ 3 Phase - 240V: 40 hp
- HP @ 3 Phase - 480V: 100 hp
- HP @ 3 Phase - 575V: 100 hp
- Height: 3.54 in
- IP Rating: IP20
- Includes Auxiliary Contacts: No
- Item: IEC Magnetic Contactor
- Maximum Operating Temperature: 122 Degrees F
- Maximum Voltage Rating: 690V AC
- Mechanical Operating Durability: 10000000
- Minimum Operating Temperature: -13 Degrees F
- Mounting Style: DIN Rail, Panel
- Mounting Hole Diameter: 0.24 in
- Mounting Hole Distance - Height: Not Applicable
- Mounting Hole Distance - Width: Not Applicable
- Number of Auxillary Contacts: 0
- Number of Poles: 3
- Overall Depth: 6.5 in
- Overall Height: 6.5 in
- Overall Width: 3.5 in
- Product Height: 6.5 in
- Product Length/Depth: 6.5 in
- Product Name: Eaton XT IEC contactor
- Response Time: Not Rated
- Reversing: No
- Reversing Capability: Non-Reversing
- Series: XT
- Standards: CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
