IEC Magnetic Contactor, 1NO, 208V AC, 4 P, Non-Reversing, Screw MPN:XTCF045C10E
Free Shipping
In Stock

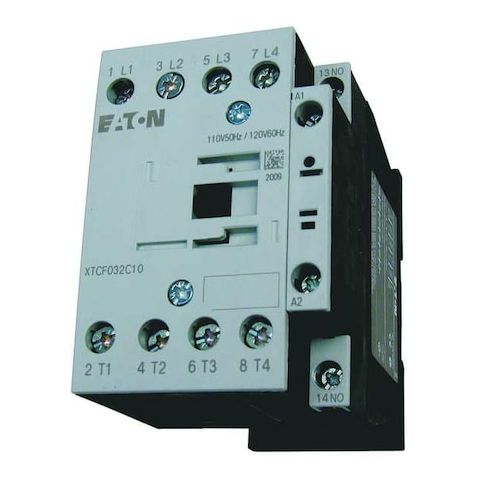

The Eaton XT IEC Magnetic Contactor is a reliable and efficient solution for control panels, offering standardized sizing and interchangeability. With a 1NO auxiliary contact and 4 poles, it provides a non-reversing configuration for precise control. Rated for 45A at 208V AC, it's suitable for a wide range of applications, including industrial automation, HVAC systems, and power distribution. Its compact design and screw termination make it easy to integrate into existing systems. Certified to international standards, including UL Listed, CSA Certified, and CE Marked, this contactor ensures safe and reliable operation in a variety of environments and industries.
Top product features:
- IEC Magnetic Contactor with 1 normally open (NO) auxiliary contact
- Non-reversing configuration for predictable operation
- Embedded Surge Suppressor for enhanced protection against voltage spikes
Top product applications:
- Control Panels
- Industrial Automation Systems
- Motor Control Circuits
The Eaton XT IEC contactor is an IEC Magnetic Contactor with 1 normally open (NO) auxiliary contact and 4 poles, configured as non-reversing. It is rated for operation within the specified voltage and current ranges and intended for use in control panels where standardized sizing and interchangeability are required.
- Action/Configuration: Non-Reversing
- 4P
- 1NO auxiliary
- - Coil Voltage: 208 V AC
- - Amperage Rating: 45 A
- - Maximum Voltage Rating: 690 V AC
- - Frame Size / Series: Frame C
- XT
- - Mounting Style: DIN Rail, Panel
- - Includes Auxiliary Contacts: Yes (1 NO)
- - Embedded Surge Suppressor: Yes
- - Enclosure: No Enclosure
- - IP Rating: IP20
- - Termination: Screw
- - Poles: 4
- - Frequency: 60 Hz
- - Certifications/Standards: EN 60947
- UL Listed
- CSA Certified
- IEC 60947
- CE Marked
- RoHS
- - Product Dimensions: Width 4 in
- Height 2.75 in
- Depth 4.5 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 4.00
- Package Height: 2.90
- Package Weight: 1.20
