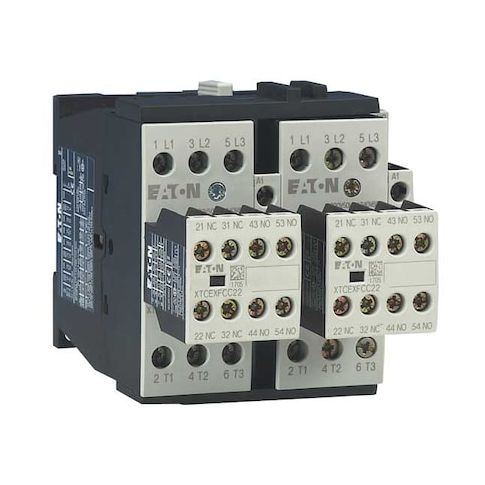

IEC Magnetic Contactor, 1NC/2NO, 480V AC, 3 P, Reversing, Screw MPN:XTCR025C21C

• The Eaton XT IEC contactor is a three-pole, full-voltage reversing IEC magnetic contactor with a 480 V AC coil. Rated for operation within the specified IEC standards, it uses screw terminals with mounting options for DIN Rail or panel installations. The unit does not include an enclosure

• IP20 per IEC standards. It is part of the XT series (Frame C) and has a rated full-load inductive current of 25 A and resistive current of 45 A under specified conditions, with an embedded surge suppression component.

  - Reversing action: Yes

• - Coil voltage: 480 V AC
• - Poles: 3
• - Amperage (full-load): Has a rated full-load inductive current of 25 A and resistive current of 45 A under specified conditions
• - Auxiliary contacts: 2 NO / 1 NC (configurations listed in the attribute set)
• - Embedded surge suppression: Includes an embedded surge suppression component (if applicable)
• - Terminal connections: Screw
• - Mounting style: DIN Rail, Panel
• - Enclosure: Does not include an enclosure
• IP20 per IEC standards
• - Certifications: CE Marked
• CSA Certified
• EN 60947
• IEC 60947
• RoHS
• UL Listed
• - Frame/Series: Frame C
• XT
• - Dimensions: Width 7.5 in
• Height 4.5 in
• Depth 4.75 in
• - Mounting hole: Diameter 0.16 in
• Distances: Height 2.95 in
• Width 1.77 in
• - Temperature range: -13 F to 122 F
• - Frequency: 50/60 Hz (50-60 Hz)
• - HP rating (3-phase at 480V): 15 hp
• - Type: Full voltage reversing contactor
