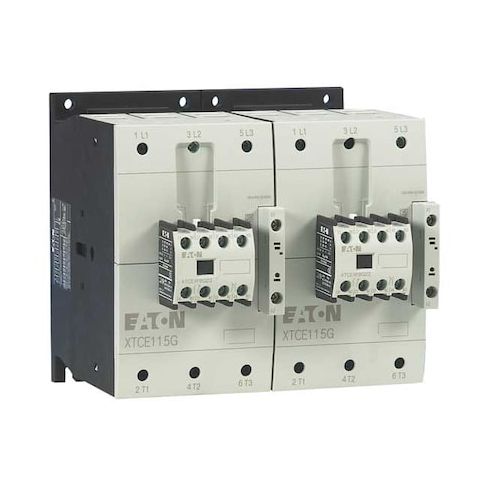

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Reversing, Screw MPN:XTCR170G11TD
Free Shipping
In Stock
The Eaton XT IEC contactor is a reliable and efficient solution for controlling motors and power circuits in a wide range of applications. With its 24V DC coil and 3-pole design, it provides reversing action and high current ratings of up to 170A inductive and 275A resistive. The contactor also features two auxiliary contacts and surge suppression, making it ideal for use in industrial settings, such as manufacturing, material handling, and HVAC systems. Its compact design and DIN rail mounting make it easy to integrate into existing systems, providing a reliable and efficient solution for motor control and power management.
Top product features:
- The Eaton XT IEC contactor has a reversing action.
- It includes a surge suppression component compliant with applicable standards.
- It has two auxiliary contacts (1 NO / 1 NC).
Top product applications:
- Power circuit switching
- Motor control
- Automated manufacturing equipment control
The Eaton XT IEC contactor is an IEC magnetic contactor (3-pole) with reversing action and a 24 V DC coil. It is rated for switching power circuits and controlling motors within specified parameters, with current ratings of up to 170 A (inductive) and 275 A (resistive), and two auxiliary contacts (1 NO / 1 NC). Includes a surge suppression component compliant with applicable standards, screw terminals, and N/A enclosure, and belongs to the XT series (frame G) for mounting on DIN rails or panels.
- Action: Reversing
- - Poles: 3
- - Coil voltage: 24 V DC
- - Full-load current: Inductive 170 A
- Resistive 275 A
- - Auxiliary contacts: 2 (1 NO / 1 NC)
- - Surge suppression: Includes a surge suppression component compliant with applicable standards
- - Terminals: Screw
- - Enclosure: N/A
- - Mounting style: DIN Rail, Panel
- - Frame/Series: Frame G
- Series XT
- - Dimensions: Height 8.25 in
- Width 18.5 in
- Depth 10.5 in
- - Mounting hole diameter: 0.27 in
- - Mounting hole distances: Height 11.77 in
- Width 6.97 in
- - Certifications: CE Marked
- EN 60947
- IEC 60947
- UL Listed
- CSA Certified
- RoHS
- - Product name: Eaton XT IEC contactor
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 11.10
- Package Height: 8.20
- Package Weight: 15.16
