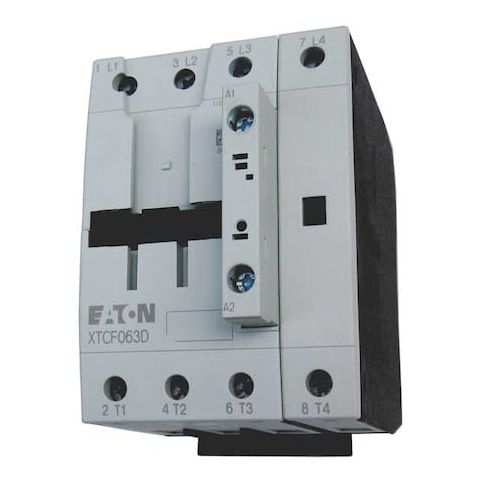

IEC Magnetic Contactor, No Auxiliary Contacts, 120V AC, 4 P, Non-Reversing, Screw MPN:XTCF063D00A
The Eaton XT IEC magnetic contactor is a reliable and efficient solution for controlling power circuits in various applications. Suitable for use in motor control and lighting systems, this 4-pole non-reversing contactor provides a safe and reliable way to switch power on and off. With a 120V AC coil and no auxiliary contacts, it's perfect for applications where simplicity and reliability are key. Its compact design and high mechanical durability make it ideal for use in a wide range of industries, including manufacturing, healthcare, and transportation. This contactor is also CE marked and UL listed for added assurance.
Top product features:
- Embedded Surge Suppressor
- Non-Reversing Action
- Screw Terminals for Termination
Top product applications:
- Controlling loads such as motors
- Controlling lighting
- Switching power circuits
The Eaton XT IEC contactor is an IEC magnetic contactor (4-pole, non-reversing) with a 120V AC coil and no auxiliary contacts. Rated for switching power circuits within specified parameters
- suitable for controlling loads such as motors and lighting when used according to manufacturer instructions.
- Coil voltage: 120 V AC
- - Action: Non-Reversing
- - Reversing: No
- - Number of Poles: 4
- - Auxiliary Contacts: No
- - Frame Size / Series: Frame D
- XT
- - Maximum Voltage Rating: 690V AC
- - Frequency: 50/60 Hz
- - IP Rating: IP20
- - Enclosure: No Enclosure
- - Mounting Style: DIN Rail, Panel
- - Termination: Screw Terminals
- - Embedded Surge Suppressor: Yes
- - Certifications/Compliances: UL Listed
- CSA Certified
- CE Marked
- EN 60947
- IEC 60947
- RoHS
- - Operating Temperature: -13°F to 122°F
- - Mechanical Durability: 10,000,000 cycles
- - Overall Dimensions: 3.35 in W x 4.53 in H x 5.79 in D
- - Phase: Three
Additional Information
- Country of Origin: RO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 5.00
- Package Height: 4.00
- Package Weight: 2.44
