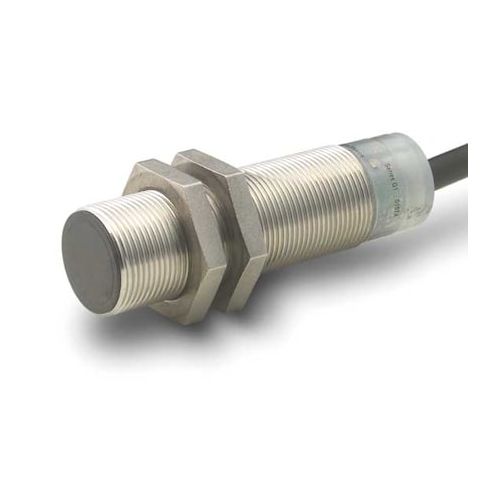

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Semi-Shielded MPN:E57-18LE12-C
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Semi-Shielded
The Eaton Inductive Cylindrical Proximity Sensor is a reliable and versatile solution for detecting objects in various industrial settings. Its semi-shielded design and stainless steel construction ensure durability and resistance to harsh environments. With a detecting distance of 12 mm and a frequency of 500 Hz, this sensor can be used in applications such as conveyor belt monitoring, object detection in production lines, and material handling. Its 3-wire NPN output and 6-48V DC power requirement make it easy to integrate into existing systems, while its IP67 and IP69K ratings ensure reliable operation in demanding conditions.
Top product features:
- Cylindrical shape for easy mounting and integration in confined spaces
- Semi-shielded design for reduced electromagnetic interference
- Detects objects up to 12 mm away with a 500 Hz operating frequency
Top product applications:
- Automotive Industry
- Assembly Line Monitoring
- Material Handling Systems
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 6 to 48V DC, Semi-Shielded, Proximity Sensor Operating Frequency 500 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 12 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 66 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 500mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 5.10
- Package Height: 1.70
- Package Weight: 0.40
Product info last updated on January 14, 2026 11:10pm UTC
Category: Industrial Electrical Controls and Automation
