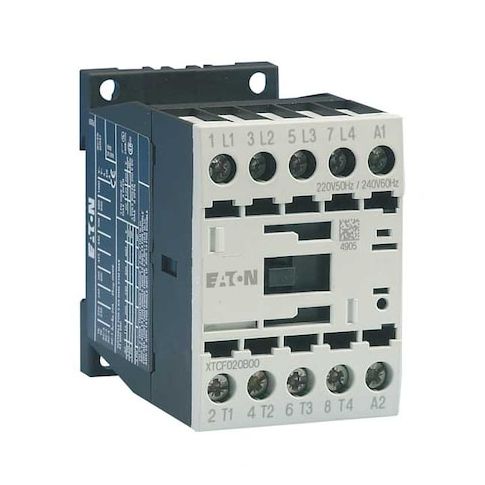

IEC Magnetic Contactor, No Auxiliary Contacts, 208V AC, 4 P, Non-Reversing, Screw MPN:XTCF020B00E
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient solution for switching power circuits in a variety of applications. With a 20A amperage rating and 4-pole non-reversing design, this contactor is ideal for use in industrial control systems, motor control, and power distribution. Its compact size and DIN rail mounting make it easy to integrate into existing systems. The XT series contactor offers surge suppression and meets UL and CSA certification standards, ensuring safe and reliable operation in harsh environments. Suitable for applications such as machine control, conveyor systems, and HVAC, this contactor provides a high level of performance and durability.
Top product features:
- Switches power circuits
- Has a mechanical lifespan rating based on standard testing procedures
- Includes a surge suppression component
Top product applications:
- Industrial Control Panels
- General Purpose Control Circuits
- Machine Tool Control
The Eaton XT IEC contactor is an IEC Magnetic Contactor used to switch power circuits. It is a 4-pole, non-reversing device with a coil rated for operation within the specified voltage range, wired via screw terminals and with no auxiliary contacts. It carries a 20 A amperage rating and is rated for operation within the specified voltage and frequency ranges. The unit belongs to the XT series, Frame B, and is designed for mounting on DIN rail or panel according to manufacturer specifications.
Key features:
- - Action: Non-Reversing
- - Reversing: No
- - Amperage Rating: 20A
- - Coil Voltage: 208 V AC
- - Contact Configuration: 0 NO, 0 NC
- - Auxiliary Contacts: No
- - Embedded Surge Suppressor: Includes a surge suppression component as specified by the manufacturer
- - Certifications: UL Listed
- CSA Certified
- - Maximum Voltage Rating: 690V AC
- - Frequency: 60 Hz
- - Frame Size / Series: Frame B
- XT
- - Mounting Style: DIN Rail, Panel
- - Terminal Connection Type: Screw
- - IP Rating: IP20
- - Enclosure: No Enclosure
- - Mechanical Durability: Has a mechanical lifespan rating based on standard testing procedures
- - Operating Temperature: -13°F to 122°F
- - Dimensions: Height 3.07 in
- Width 2.76 in
- Depth 1.81 in
- - Mounting Hole Diameter: 0.16 in
- - Mounting Hole Spacing: Height 2.36 in
- Width 1.38 in
- - Number of Poles: 4
Additional Information
- Country of Origin: RO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.80
- Package Height: 1.90
- Package Weight: 0.55
