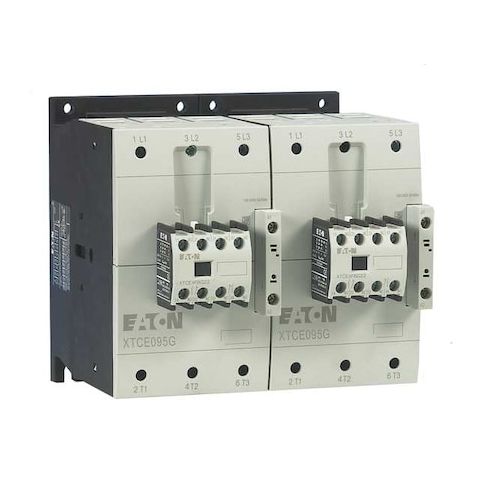

The EATON - IEC Magnetic Contactor is a reversing contactor designed for industrial applications. It is rated for operation with a coil voltage of 208V AC and has an amperage rating of up to 95A. This device features a screw terminal electrical connection and includes auxiliary contacts in the configuration of 1NO/1NC. The contactor is certified by CSA, UL Listed, EN 60947, and IEC 60947 standards, ensuring its reliability in various operational environments.
Key Features:
- Reversing action allows for control over motor direction.
- Coil Voltage: Rated for operation with a coil voltage of 208V AC.
- Amperage Rating: Has an amperage rating of up to 95A.
- Auxiliary Contact Configuration: Comes equipped with auxiliary contacts in the form of one normally open (1NO) and one normally closed (1NC).
- Certifications: Certified by CSA, IEC 60947, UL Listed, EN 60947 standards.
- Electrical Connection: Utilizes Screw Terminals for secure electrical connections.
- Horsepower Ratings: Compatible with various horsepower ratings from single phase to three phase such as HP @ Single Phase -120V AC at7.5 hp, HP @ Three Phase -240V AC at40 hp, HP @ Three Phase -480V AC at75 hp
-Mounting Style: Versatile mounting options include DIN Rail or Panel mountings.
-Temperature Range : Rated for operation within the temperature range of -13 Degrees F to122 Degrees F.
