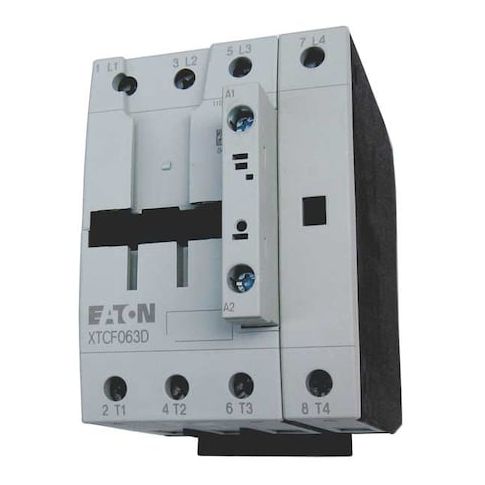

IEC Magnetic Contactor, No Auxiliary Contacts, 240V AC, 4 P, Non-Reversing, Screw MPN:XTCF063D00B
Free Shipping
In Stock
The Eaton XT IEC contactor is a reliable and efficient solution for control panel applications, offering a 240V AC coil and four poles for safe and secure operation. With a 63A current load and embedded surge suppressor, this contactor provides exceptional protection against electrical surges and spikes. Suitable for use in a variety of applications, including industrial automation and control systems, the Eaton XT IEC contactor is a versatile and durable choice for professionals and businesses alike. Its compact design and DIN rail mounting style make it easy to integrate into existing systems, reducing installation time and costs.
Top product features:
- The Eaton XT IEC contactor has four poles and a 240 V AC coil.
- It includes an embedded surge suppressor.
- It has screw terminals for electrical connections.
Top product applications:
- Control panel applications
- Industrial automation systems
- Electrical power distribution systems
The Eaton XT IEC contactor is an IEC magnetic contactor (Frame D) with four poles and a 240 V AC coil. Rated for operation with a 63 A current load
- does not include auxiliary contacts. Suitable for use in control panel applications
- includes an embedded surge suppressor and screw terminals. Does not include an enclosure.
- Product Name: Eaton XT IEC contactor
- - Type/Frame: IEC magnetic contactor, Frame D
- Series XT
- Type: Full voltage non-reversing contactor
- - Action and Reversing: Non-Reversing
- Reversing: No
- - Poles and Contacts: Number of Poles: 4
- Auxiliary Contacts: No
- - Coil Voltage: 240 V AC
- - Amperage and Load: Amperage Rating: 63A
- Full Load Amps (Resistive): 63 A
- Full Load Amps (Inductive): 40 A
- - Electrical Ratings: Maximum Voltage Rating: 690 V AC
- - Protective/Surge: Embedded Surge Suppressor: Yes
- - Connections and Mounting: Electrical Connection: Screw Terminals
- Mounting Style: DIN Rail, Panel
- - Enclosure and Protection: Enclosure: Does not include an enclosure
- IP Rating: IP20
- - Dimensions and Frame: Frame Size: D
- Width: 3.35 in
- Height: 4.53 in
- Depth: 5.79 in
- - Certifications/Standards: Certifications: UL Listed
- CSA Certified
- IEC 60947
- EN 60947
- Standards: CE
- CSA
- EN 60947
- IEC 60947
- RoHS
Additional Information
- Country of Origin: RO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.90
- Package Height: 3.80
- Package Weight: 2.45
