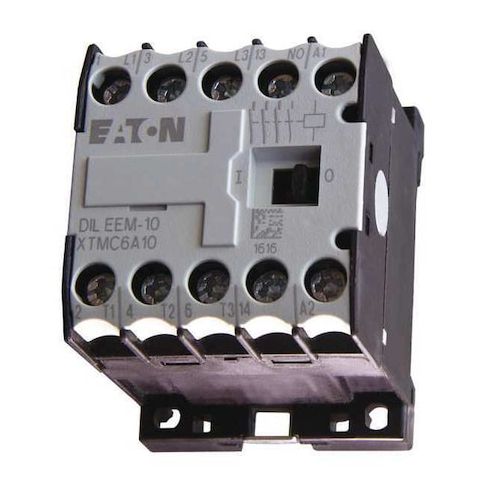

IEC Miniature Magnetic Contactor, 1NO, 24V AC, 3 P, Non-Reversing, Screw MPN:XTMC6A10T
Free Shipping
In Stock
The Eaton XT IEC mini contactor is a reliable and efficient solution for controlling and switching electrical loads in a variety of applications. Suitable for use in industrial, commercial, and residential settings, this compact device features a 24V AC coil and 3 poles with a 1 NO auxiliary contact. Its non-reversing action and embedded surge suppressor provide added protection and reliability. Ideal for use in control panels, automation systems, and machine control applications, the XT IEC mini contactor offers a cost-effective and space-saving solution for managing electrical loads. Its compact design and rugged construction make it perfect for use in harsh environments.
Top product features:
- Non-Reversing action
- 3 poles with 1 NO auxiliary contact
- Embedded surge suppressor
Top product applications:
- Industrial Automation Systems
- Motor Control Circuits
- HVAC and Building Automation Systems
The Eaton XT IEC mini contactor is an IEC miniature magnetic contactor with 3 poles and a 1 NO auxiliary contact, rated for operation with a 24V AC coil. It is a non-reversing device rated for switching specified load types and ratings and is compatible with DIN rail mounting and screw terminal connections. The unit includes an embedded surge suppressor
- supplied without enclosure.
Key features
- - Action: Non-Reversing
- - Poles / Auxiliary: 3 poles
- 1 NO auxiliary contact
- - Coil voltage: 24V AC
- - Amperage rating: 6.60A
- - Maximum voltage rating: 690V AC/DC
- - Full Load Amps: Inductive 6 A
- Resistive 20 A
- - Frequency: 50/60 Hz
- - Embedded surge suppressor: Yes
- - Electrical connection: Screw terminals
- - Mounting style: DIN Rail, Panel
- - Enclosure: No Enclosure
- - IP rating: IP20
- - Frame size / Series: Frame A
- Series XT
- - Certifications: UL Listed
- CSA Certified
- IEC 60947
- EN 60947
- - Dimensions: Width 2.5 in
- Height 2.5 in
- Depth 2 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 1.80
- Package Height: 2.20
- Package Weight: 0.40
