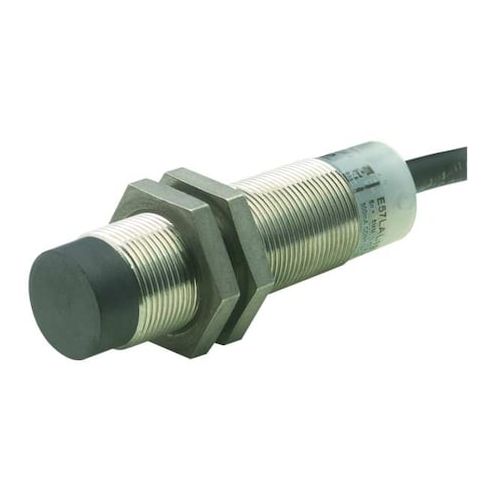

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded MPN:E57-18LE20-B1
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded
This inductive proximity sensor is a reliable and versatile solution for detecting objects within a 20mm range. Its cylindrical design and stainless steel construction make it suitable for use in harsh environments, including those with high temperatures and exposure to chemicals. With a detection frequency of 500Hz and a maximum current load of 500mA, this sensor is ideal for applications such as material handling, conveyor systems, and automation equipment. Its compact size and flexible 2m cable make it easy to integrate into existing systems, providing a cost-effective and efficient solution for detecting objects in a variety of industries.
Top product features:
- Inductive sensing technology allows for detection of metal objects
- Detects objects up to 20 mm away
- Operates in a wide temperature range of -13 to 158 degrees Fahrenheit
Top product applications:
- Automotive manufacturing: The sensor can be used to detect the presence of metal objects in tight spaces, such as near gearboxes or engine components.
- Medical equipment: The sensor's high temperature range and IP67/IP69K ratings make it suitable for use in medical equipment, such as MRI machines or autoclaves.
- Food processing: The stainless steel construction and IP67/IP69K ratings make the sensor resistant to harsh chemicals and high-pressure washdowns, making it suitable for use in food processing equipment.
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 6 to 48V DC, Unshielded, Proximity Sensor Operating Frequency 500 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 20 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 66 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 500mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 1.80
- Package Height: 6.20
- Package Weight: 0.40
Product info last updated on January 14, 2026 11:51pm UTC
Category: Industrial Electrical Controls and Automation
