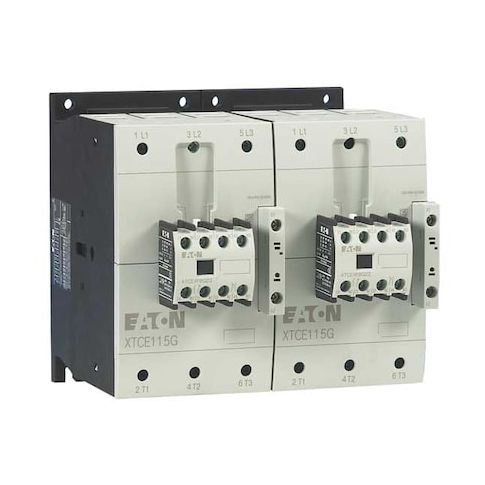

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Reversing, Screw MPN:XTCR170G11T
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient solution for controlling and reversing the flow of electrical current in a variety of applications. With its 24V AC coil and 3-pole design, this contactor is suitable for use in commercial and industrial settings, including HVAC, lighting, and power distribution systems. The reversing capability and integrated surge suppression component provide added protection and flexibility, making it an ideal choice for applications where frequent switching is required. Its compact design and easy mounting options make it a convenient addition to any control panel or system.
Top product features:
- The Eaton XT IEC contactor is a 3-pole device configured for 1 normally open and 1 normally closed main contact, plus two auxiliary contacts (1 NO/1 NC).
- It has a 24V AC coil.
- It includes an integrated surge suppression component.
Top product applications:
- Automotive Applications: The Eaton XT IEC contactor can be used for reversing applications in the automotive industry, such as in the control of electric motors used for windshield wipers, fans, and other accessories.
- Industrial Automation: The contactor's 3-pole configuration and reversing capability make it suitable for use in industrial automation systems, such as in the control of conveyor belts, pumps, and other equipment.
- Control Panels: The contactor's compact size and mounting options make it a good fit for use in control panels for commercial and residential buildings, where it can be used to control lighting, heating, and cooling systems.
The Eaton XT IEC contactor is an IEC magnetic, full-voltage reversing contactor rated for operation within the specified voltage and current ranges. It is a 3-pole device with a 24V AC coil, configured for 1 normally open and 1 normally closed main contact, plus two auxiliary contacts (1 NO/1 NC). It includes an integrated surge suppression component (note: does not guarantee protection) and uses screw terminals, with mounting options on DIN rail or panel. This unit is part of the XT series (Frame G) and has an IP20 rating without enclosure (does not imply suitability for all environments).
Key features
- - Action: Reversing
- - Reversing: Yes
- Reversing capability: Reversing
- - Coil Voltage: 24 V AC
- - Main contact configuration: 1 NO, 1 NC
- - Auxiliary contacts: 2 total (1 NO/1 NC)
- - Integrated surge suppression component: Yes (note: does not guarantee protection)
- - Electrical connection: Screw terminals
- - Mounting style: DIN Rail, Panel
- - Enclosure: No Enclosure
- - IP Rating: IP20
- - Frame/Series: Frame G
- XT series
- - Certifications: UL Listed
- CSA Certified
- EN 60947
- IEC 60947
- RoHS
- CE Marked
- - Overall dimensions: Width 18.5 in
- Height 8.25 in
- Depth 10.5 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 11.20
- Package Height: 8.20
- Package Weight: 15.20
