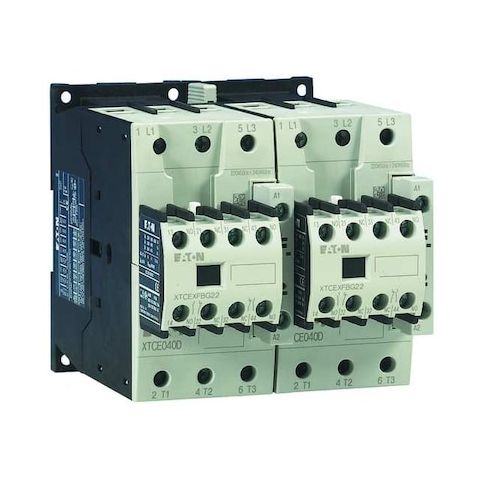

IEC Magnetic Contactor, 1NC/1NO, 208V AC, 3 P, Reversing, Screw MPN:XTCR050D11E
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient 3-pole reversing contactor designed for use in a variety of applications, including industrial control systems, motor control, and power distribution. Its coil-energized design allows for easy operation within specified IEC standards, while its surge suppression component provides added protection against electrical surges. Compatible with DIN Rail and panel mounting configurations, this contactor is ideal for use in harsh environments and offers benefits such as improved safety, reduced downtime, and increased productivity. Suitable for applications up to 50 HP, it is a versatile solution for industrial and commercial settings.
Top product features:
- Reversing action allows for bidirectional control of connected loads
- 3-pole configuration enables three-phase power handling
- Screw terminals facilitate easy electrical connections
Top product applications:
- Motor Control Circuits
- Industrial Automation Systems
- Power Distribution Panels
The Eaton XT IEC contactor is a 3-pole, reversing, electrically operated switching device rated for operation within the specified IEC standards. It is coil-energized at 208 V AC and contains a surge suppression component (if applicable). The unit uses screw terminals and is compatible with DIN Rail and panel mounting configurations as per standard specifications.
Key features
- - Action: Reversing
- - Poles: 3
- - Amperage rating: 50A
- - Coil voltage: 208 V AC
- - Frequency: 60 Hz
- - Full load amps: Inductive 50 A
- Resistive 80 A
- - HP @ Three Phase: 208V 15 hp
- 240V 20 hp
- 480V 40 hp
- 575V 50 hp
- - Auxiliary contacts: 2 (1NO/1NC)
- - Surge suppression component: Yes (if applicable)
- - Electrical connection: Screw terminals
- - Mounting style: DIN Rail, Panel
- - Frame size: D
- - Series: XT
- - Type: Full voltage reversing contactor
- - Enclosure: No Enclosure
- - IP rating: IP20
- - Certifications: CE Marked
- CSA Certified
- UL Listed
- EN 60947
- IEC 60947
- RoHS
- - Dimensions: Overall Width 9.5 in
- Overall Height 6 in
- Overall Depth 6.5 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.30
- Package Width: 6.40
- Package Height: 5.80
- Package Weight: 4.65
