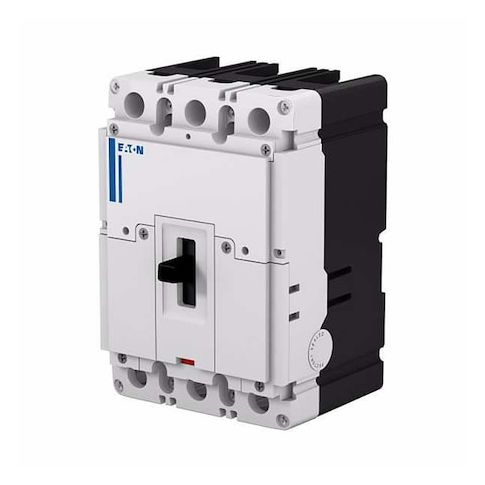

Circuit Breaker, PDG Series, 70A, 3 Pole, 600V AC, 35kA at 480V AC, A Curve MPN:PDG23G0070TFFL
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G200901944
Circuit Breaker, PDG Series, 70A, 3 Pole, 600V AC, 35kA at 480V AC, A Curve
The Eaton PDG Series 3 Pole 70A Circuit Breaker is a reliable and efficient solution for electrical distribution systems. Suitable for a variety of applications, including commercial and industrial settings, it provides a maximum short-circuit current rating of 35kA at 480V AC. With a thermal magnetic trip type and instantaneous trip fixed, it ensures safe and reliable operation. The breaker's compact design and standard terminals make it easy to install and maintain, while its wide operating temperature range (-4°F to 158°F) ensures flexibility in different environments. Ideal for use in panelboards, switchboards, and other electrical enclosures.
Top product features:
- Protects against overcurrent conditions with a maximum interrupting capacity of 35kA at 480V AC
- Provides a 3-pole configuration for three-phase applications
- Features a thermal magnetic trip type for enhanced safety and reliability
Top product applications:
- Industrial Power Distribution Systems
- Commercial Electrical Panelboards
- High-Density Data Centers
Circuit Breaker, 70 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 35 kA at 480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Standard Terminals Load Only, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 225A/Frame 2, Height 6 in, Width 4.11 in, Depth 3.5 in, Min. Wire Size 14 AWG, Max. Wire Size 1/0 AWG, Max. Operating Temp. 158 Degrees F, Min. Operating Temp. -4 Degrees F
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 6.00
- Package Weight: 4.00
Product info last updated on February 2, 2026 5:20am UTC
Category: Circuit Protection
