Molded Case Circuit Breaker, PDG Series, 1200A, 3 Pole, 600V AC, 50kA at 480V AC, A Curve MPN:PDG53K1200E2MN
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G200901937

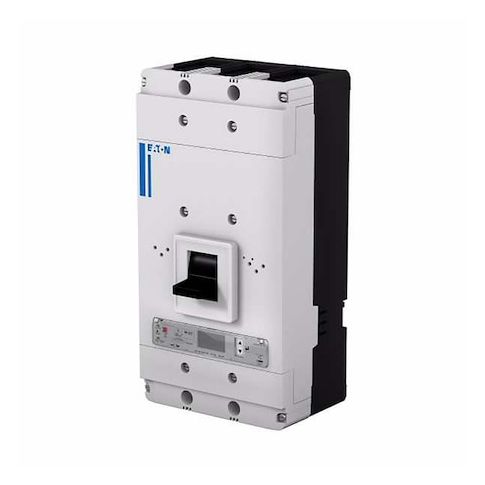

Molded Case Circuit Breaker, PDG Series, 1200A, 3 Pole, 600V AC, 50kA at 480V AC, A Curve
Protect your electrical infrastructure with the Eaton PDG Series Molded Case Circuit Breaker. Designed for high-amperage applications, this 3-pole breaker provides reliable protection against overloads and short circuits. With a maximum interrupting rating of 50kA at 480V AC, it can handle even the most demanding power systems. Suitable for use in power distribution and motor control applications, the PDG Series breaker offers fast and accurate tripping, ensuring seamless operation and minimizing downtime. Its compact design and easy installation make it an ideal choice for a wide range of industries and applications, from commercial to industrial settings.
Top product features:
- Instantaneous trip functionality allows for rapid shutdown in case of an electrical fault.
- Three-phase connection enables the product to handle complex power systems and provide reliable protection.
- A maximum operating temperature of 158 degrees F ensures the product can withstand high ambient temperatures without compromising performance.
Top product applications:
- Industrial Power Distribution Systems
- High-Current Motor Control Circuits
- Large Commercial or Industrial Electrical Panels
Circuit Breaker, 1,200 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 50 kA at 480V AC, For Use With Power Defense, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Not Applicable, Trip Type Electronic, Phase Three, Instantaneous Trip Instantaneous, Phase Connection ABC, Frame Size 1200A/Frame 5, Height 16 in, Width 8.25 in, Depth 5.5 in, Min. Wire Size 500 AWG, Max. Wire Size 4/0 AWG, Max. Operating Temp. 158 Degrees F
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 12.00
- Package Height: 11.00
- Package Weight: 50.00
Product info last updated on February 20, 2026 12:09pm UTC
Category: Circuit Protection
