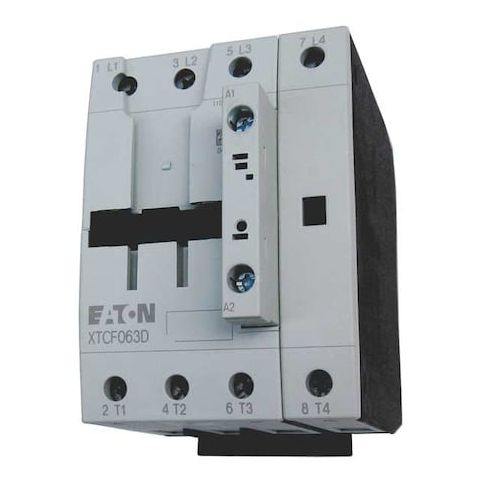

IEC Magnetic Contactor, No Auxiliary Contacts, 208V AC, 4 P, Non-Reversing, Screw MPN:XTCF063D00E
Free Shipping
In Stock
The Eaton XT IEC magnetic contactor is a reliable and efficient solution for controlling 4-pole, non-reversing circuits. Designed for use in a variety of applications, including industrial automation, HVAC, and power distribution, this contactor provides a robust and long-lasting performance. With a 208V AC coil and screw terminals, it's easy to install and integrate into your system. The XT-series device offers surge suppression and is certified to recognized standards and regulations, ensuring safe and reliable operation. Ideal for use in harsh environments, this contactor withstands temperatures from -13 to 122°F and is available for DIN Rail or panel mounting.
Top product features:
- The Eaton XT IEC contactor is a 4-pole, non-reversing magnetic contactor.
- It uses screw terminals for easy connection and disconnection.
- It contains a surge suppression component to protect against electrical surges.
Top product applications:
- Industrial Automation Systems
- Motor Control Circuits
- Power Distribution Panels
The Eaton XT IEC contactor is a 4-pole, non-reversing IEC magnetic contactor with a 208 V AC coil. It uses screw terminals and has no auxiliary contacts. This XT-series device (Frame D) is rated for operation within the specified voltage and frequency ranges, contains a surge suppression component (if applicable), and is offered with no enclosure (IP20) for DIN Rail or panel mounting. It is designed to withstand specified operational cycles under standard testing conditions and certified according to recognized standards and regulations.
- Coil voltage: 208 V AC
- - Amperage ratings: 63 A (resistive full-load)
- 40 A (inductive full-load)
- - Poles: 4
- - Action: Non-Reversing
- - Auxiliary contacts: None
- - Contact configuration: 0 NO, 0 NC
- - Mounting: DIN Rail, Panel
- - Terminals: Screw
- - Surge suppression component: Yes (if applicable)
- - Enclosure: No Enclosure
- - IP Rating: IP20
- - Maximum voltage rating: 690 V AC
- - Frequency: 60 Hz
- - Operating temperature: -13 to 122 °F
- - Certifications: certified according to recognized standards and regulations
- - Series/Frame: XT / Frame D
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.90
- Package Height: 3.80
- Package Weight: 2.40
