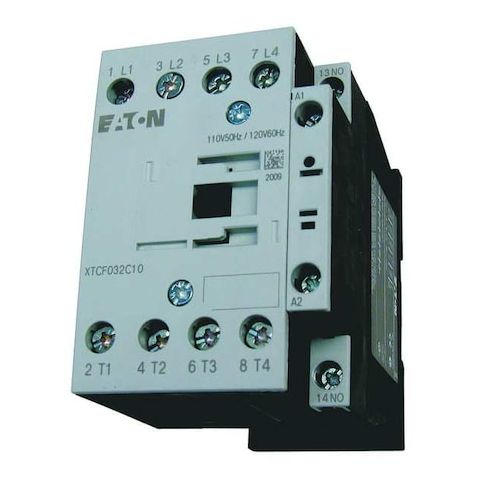

IEC Magnetic Contactor, 1NO, 480V AC, 4 P, Non-Reversing, Screw MPN:XTCF032C10C
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient solution for a wide range of control panel applications. Designed for operation within 480V AC and 32A current ranges, this non-reversing contactor features an electromagnetic coil compatible with the specified voltage rating. Its compact dimensions and screw terminal connection type make it easy to integrate into new or existing systems. Ideal for use in industrial automation, manufacturing, and power distribution, this contactor provides a safe and reliable means of controlling electrical circuits, reducing downtime and increasing overall system efficiency.
Top product features:
- The Eaton XT IEC contactor is rated for operation within the specified voltage and current ranges.
- It utilizes an electromagnetic coil compatible with the specified voltage rating.
- It features a non-reversing action.
Top product applications:
- Control Panels
- Electrical Distribution Systems
- Industrial Automation Systems
The Eaton XT IEC contactor is rated for operation within the specified voltage and current ranges. It utilizes an electromagnetic coil compatible with the specified voltage rating. The XT series features dimensions consistent with industry standards for compatibility in control panel applications.
- Poles: 4
- - Action: Non-Reversing
- - Reversing: No
- - Contact Configuration: 1 NO
- - Auxiliary Contacts Form: 1 NO
- - Includes Auxiliary Contacts: Yes
- - Coil Voltage / Coil Volts: 480 V AC
- - Amperage Rating: 32A
- - Full Load Amps (Inductive/Resistive): 18 A / 45 A
- - Maximum Voltage Rating: 690V AC
- - IP Rating: IP20
- - Enclosure: No Enclosure
- - Mounting Style: DIN Rail
- Panel
- - Frame Size / Series: Frame C / XT
- - Standards: CE Marked
- CSA Certified
- EN 60947
- IEC 60947
- RoHS
- UL Listed
- - Terminal Connection Type: Screw
- - Type: Full voltage non-reversing contactor
- - Width / Depth / Height: 2.28 in / 4.5 in / 2.75 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 4.00
- Package Height: 2.80
- Package Weight: 1.20
