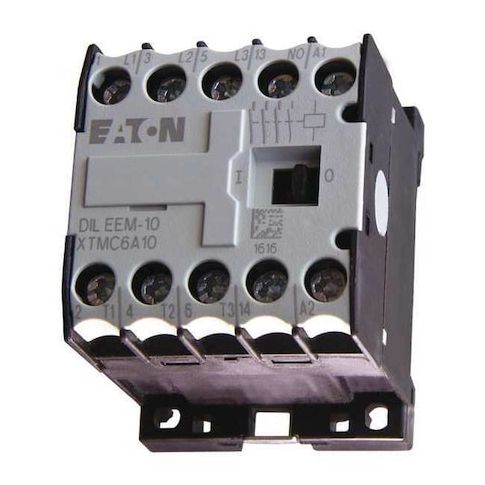

IEC Miniature Magnetic Contactor, 1NO, 480V AC, 3 P, Non-Reversing, Screw MPN:XTMC6A10C
Free Shipping
In Stock
The Eaton XT IEC Miniature Magnetic Contactor is a compact and reliable solution for controlling low-power IEC circuits in space-constrained control panels and DIN-rail assemblies. Its non-reversing operation and 3-pole design make it ideal for applications such as lighting and small motor control. With a maximum voltage rating of 690V AC/DC and continuous current ratings up to 10A, this contactor is suitable for a variety of uses, including industrial automation, HVAC, and power distribution. Its compact footprint and screw terminal connections make it easy to integrate into existing systems, providing a reliable and efficient solution for control applications.
Top product features:
- Compact design for mounting in space-constrained control panels and DIN-rail assemblies
- Electromagnetic coil for opening or closing contacts
- Built-in surge suppression components for protection against electrical disturbances
Top product applications:
- Low-power motor control in small appliances
- Control of lighting circuits in residential or commercial buildings
- Control of small heating or ventilation systems in industrial or commercial applications
The Eaton XT IEC Miniature Magnetic Contactor is a compact, electrically operated switch for controlling low-power IEC circuits. It uses an electromagnetic coil to open or close contacts, enabling control of small motors and lighting. Its footprint and IEC XT design support mounting in space-constrained control panels and DIN-rail assemblies. It is rated for non-reversing operation within specified parameters.
- Action: Rated for non-reversing operation within specified parameters
- - Poles and contacts: 3 poles
- 1 NO auxiliary contact
- - Coil Voltage: Designed for operation at specified coil voltage (e.g., 480V AC)
- - Maximum voltage rating: Rated for operation up to specified maximum voltage (e.g., 690V AC/DC)
- - Amperage ratings: Rated for continuous current within specified ranges
- actual performance may vary based on application conditions
- - Reversing: Designed as a non-reversing device according to its specifications
- - Mounting: Compatible with standard mounting methods such as DIN rail or panel mount within the recommended orientation
- - Electrical connection: Equipped with screw terminals suitable for wiring within rated parameters
- - Embedded surge suppressor: Contains built-in surge suppression components rated per manufacturer specifications but does not guarantee protection against all surges or damage from electrical disturbances
- - Enclosure/IP rating: Provided without enclosure
- IP20 according to standards but not intended for harsh environmental exposure
- - Frame/Series: Part of designated series/frame types as per manufacturer documentation
- - Certifications: Meets certain certification standards but does not imply suitability or safety under all conditions or guarantees compliance beyond testing scope
- - Mechanical durability: Specified mechanical endurance based on testing conditions but actual lifespan may vary depending on usage environment
- - Operating temperature: Intended operating temperature range based on specifications—performance outside this range cannot be guaranteed
- - Dimensions: 2.5 in W x 2 in H x 2.5 in D
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 1.90
- Package Height: 2.20
- Package Weight: 0.40
