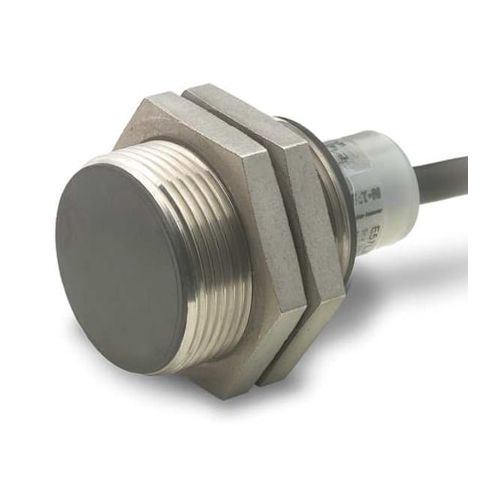

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, Micro, 2 Wires, Unshielded MPN:E57SAL30A4EA
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, Micro, 2 Wires, Unshielded
This inductive proximity sensor is a compact and versatile solution for detecting objects in industrial and commercial settings. Its cylindrical design and stainless steel construction make it ideal for use in harsh environments, such as food processing and pharmaceutical manufacturing. With a maximum detecting distance of 15mm and a wide operating temperature range, this sensor can be used to detect objects in a variety of applications, including conveyor belt monitoring and automated assembly systems. Its compact size and robust design make it an excellent choice for use in space-constrained areas.
Top product features:
- Cylindrical shape allows for easy installation in tight spaces.
- Detects objects up to 15 mm away.
- Operates at a wide temperature range of -13 to 158 Degrees F.
Top product applications:
- Automotive applications due to its high temperature range and IP67/IP69K rating
- Medical device manufacturing due to its stainless steel construction and ability to withstand harsh environments
- Food processing equipment due to its ability to detect metal objects in a wet and dirty environment
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 40 to 250V AC, Unshielded, Proximity Sensor Operating Frequency 20 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 15 mm, Proximity Sensor Electrical Connection 3 Pin Micro AC Connector, Output Mode NO, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material Stainless Steel, Length 49 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 500mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.10
- Package Width: 2.10
- Package Height: 5.00
- Package Weight: 0.15
Product info last updated on January 15, 2026 12:09am UTC
Category: Industrial Electrical Controls and Automation
