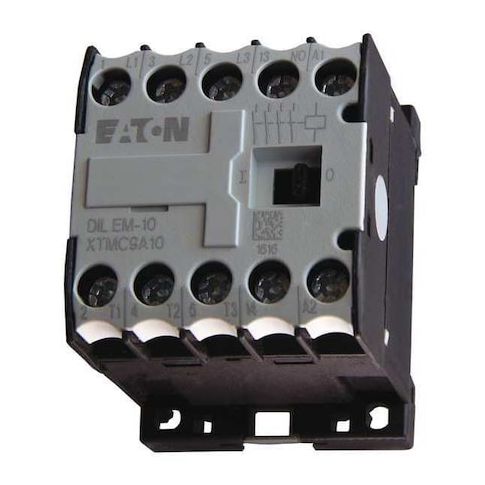

IEC Miniature Magnetic Contactor, 1NO, 24V DC, 3 P, Non-Reversing, Screw MPN:XTMC9A10TD

• The Eaton XT IEC mini contactor is a compact IEC miniature magnetic switch rated for operation within specified voltage and current ranges. It is a 3-pole, non-reversing device with a 24 V DC coil. The unit includes one normally open auxiliary contact, uses screw terminals for wiring, and includes a surge suppression component as specified by the manufacturer. It does not include an enclosure

• suitable for use in accordance with applicable standards, and is sized as Frame A in the XT series, with mounting options for DIN Rail or Panel.

  - Coil voltage: 24 V DC

• - Action: Non-Reversing
• - Poles: 3
• - Amperage rating: 8.80 A
• - Full Load Amps: Inductive 9 A
• Resistive 20 A
• - Auxiliary contact configuration: 1 NO
• - Auxiliary contact form: 1 NO
• - Electrical connection: Screw terminals
• - Embedded surge suppressor: includes a surge suppression component as specified by the manufacturer
• - Enclosure: Does not include an enclosure
• suitable for use in accordance with applicable standards
• - Frame: Frame A (XT series)
• - Mounting style: DIN Rail, Panel
• - Maximum voltage rating: rated for operation at voltages up to 690V AC/DC within specified conditions
• - IP rating: IP20
• - Mechanical operating durability: Tested for durability under standard testing procedures
• actual lifespan may vary based on usage conditions
• - Standards: CE Marked
• CSA
• EN 60947
• IEC 60947
• RoHS
• UL Listed
• - Dimensions: Width 1.44 in
• Height 2.28 in
• Depth 2.05 in
