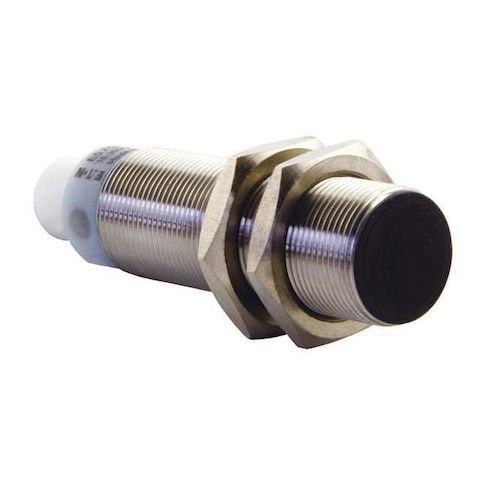

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, Micro, 3 Wires, Unshielded MPN:E57G-18UPN12-Q
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1882030
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, Micro, 3 Wires, Unshielded
This cylindrical inductive proximity sensor is designed for use in a variety of applications, including industrial automation, material handling, and robotics. Its stainless steel construction and IP67 rating make it suitable for harsh environments, while its 600 Hz operating frequency and 12 mm maximum detecting distance provide reliable detection of metal objects. With a 3-wire PNP output and 100mA current load, it can easily integrate into most control systems. Its compact size and NEMA 4X rating also make it ideal for use in tight spaces and in applications where resistance to corrosion is required.
Top product features:
- Cylindrical design for easy installation in tight spaces
- Detects objects within 12 mm of the sensor face
- Operates at frequencies up to 600 Hz for reliable detection
Top product applications:
- Automotive Parts Manufacturing
- Medical Device Assembly
- Food Processing Equipment
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 600 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 12 mm, Proximity Sensor Electrical Connection 4 Pin Micro Connector, Output Mode NO, NEMA Rating 4X, IP Rating IP67, Case Material Stainless Steel, Length 66 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 27 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 2.00
- Package Height: 2.00
- Package Weight: 0.45
Product info last updated on February 2, 2026 7:18am UTC
Category: Industrial Electrical Controls and Automation
