Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, Micro, 3 Wires, Unshielded MPN:E57P-18UNC8-Q
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1881750

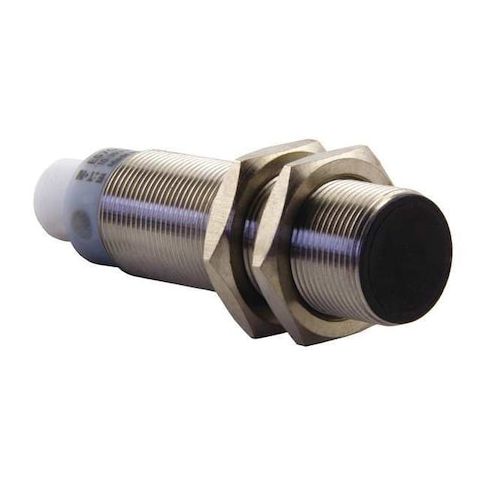

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, Micro, 3 Wires, Unshielded
This inductive proximity sensor is a compact and reliable solution for detecting objects in a variety of applications. Its cylindrical design and stainless steel construction make it ideal for use in harsh environments, such as manufacturing, food processing, and chemical plants. With a maximum detecting distance of 8 mm and operating frequency of 1,200 Hz, it can accurately detect objects with high precision. The sensor's 3-wire NPN output circuit and 10-48V DC power requirement make it easy to integrate into existing systems. Its compact size and high IP rating also make it suitable for use in tight spaces.
Top product features:
- Cylindrical design allows for easy installation in tight spaces.
- Detects objects at a distance of up to 8 mm.
- Operates at a frequency of 1,200 Hz.
Top product applications:
- Automatic door sensors
- Machine monitoring systems
- Industrial automation control
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 10 to 48V DC, Unshielded, Proximity Sensor Operating Frequency 1,200 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 4 Pin Micro Connector, Output Mode NC, NEMA Rating 4X, IP Rating IP69K, Case Material Stainless Steel, Length 66 mm, Operating Temp. Range -40 Degrees to 158 Degrees F, Max. Current Load 300mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 2.00
- Package Height: 2.00
- Package Weight: 0.45
Product info last updated on January 26, 2026 9:59pm UTC
Category: Industrial Electrical Controls and Automation
