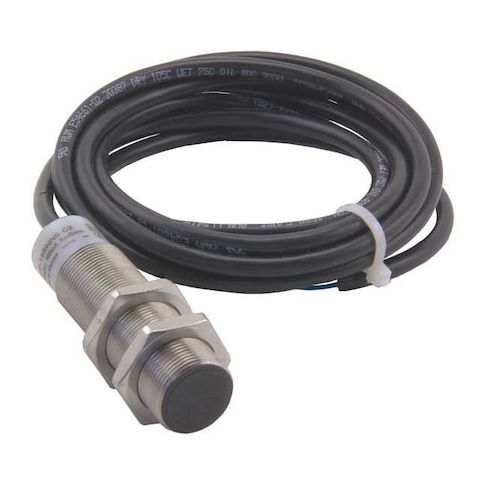

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded MPN:E57P-18UPC8-C2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1881726
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded
This inductive proximity sensor is a reliable and accurate solution for detecting presence or absence in various applications. Its compact cylindrical design and stainless steel construction make it suitable for use in harsh environments, including food processing and pharmaceutical manufacturing. With a maximum detecting distance of 8 mm, this sensor can be used in applications such as vending machines, parking systems, and material handling. Its 2-meter cable and 3-wire PNP output provide flexibility and ease of integration, making it an ideal choice for industrial automation and control systems.
Top product features:
- Cylindrical shape allows for easy installation in tight spaces
- Detects objects within an 8 mm distance
- Operates at a frequency of 1,200 Hz
Top product applications:
- Automotive Parts Manufacturing
- Industrial Automation Systems
- Medical Device Assembly
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 10 to 48V DC, Unshielded, Proximity Sensor Operating Frequency 1,200 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, NEMA Rating 4X, IP Rating IP69K, Case Material Stainless Steel, Length 66 mm, Operating Temp. Range -40 Degrees to 158 Degrees F, Max. Current Load 300mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 44 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.25
- Package Width: 5.25
- Package Height: 2.00
- Package Weight: 0.35
Product info last updated on February 1, 2026 4:59am UTC
Category: Industrial Electrical Controls and Automation
