Manual Mtr Protector, 20A, Rotary, Frame B MPN:XTPR020BC1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1879534

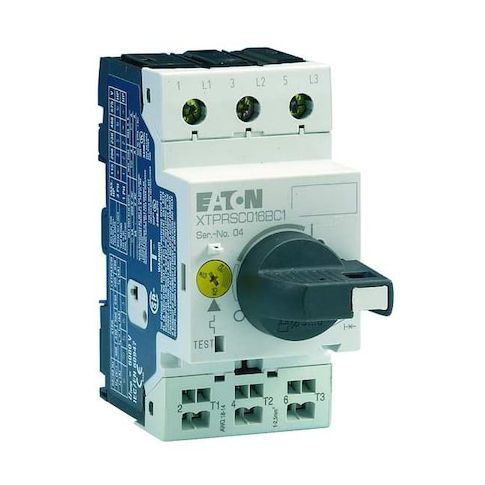

Manual Mtr Protector, 20A, Rotary, Frame B
Eaton's Manual Mtr Protector is a reliable and efficient solution for motor protection in various industrial applications. This 20A rotary protector is designed for use in single-phase and three-phase systems, providing protection against overloads and short circuits. With a maximum voltage rating of 600V AC, it can handle a wide range of motor sizes, from 1.5 to 15 horsepower. Its operator selector switch and phase three design make it easy to use and install. Suitable for use in manufacturing, processing, and other industrial settings, this protector ensures safe and efficient motor operation, reducing downtime and extending equipment lifespan.
Top product features:
- It has a manual operator selector switch.
- It protects motors from overloads with a maximum setting of 20 A and a minimum setting of 16 A.
- It can handle up to 600V AC and supports a wide range of horsepower ratings including 1.5 hp at 120V AC, 3 hp at 240V AC, 5 hp at 208V AC, and 15 hp at 600V AC.
Top product applications:
- Industrial electrical panelboards
- Electrical distribution systems
- Machine control systems
Manual Motor Protector, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 1 1/2 hp, Horsepower @ Single Phase - 240V AC 3 hp, Maximum Voltage Rating 600V AC, Number of Poles 3, Operator Selector Switch, Phase Three, Current AC 20 A, Horsepower @ Three Phase - 208V AC 5 hp, Series XTPR Series, Horsepower @ Three Phase - 600V AC 15 hp, Maximum Overload Relay Current Setting 20 A, Minimum Overload Relay Current Setting 16 A, Mounting Style DIN Rail, NEMA Enclosure Rating No Enclosure
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 2.00
- Package Height: 3.80
- Package Weight: 0.71
Product info last updated on January 31, 2026 12:21am UTC
Category: Industrial Electrical Controls and Automation
