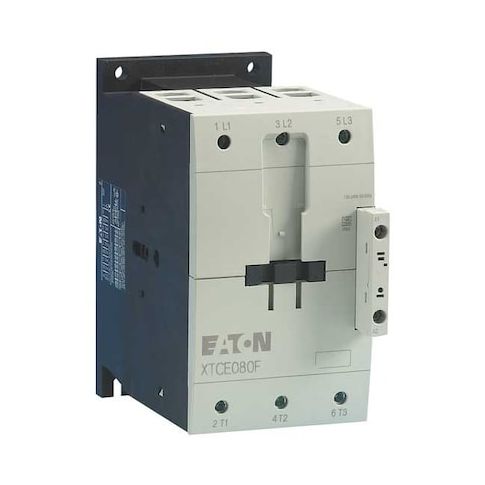

IEC Magnetic Contactor, No Auxiliary Contacts, 24V AC, 3 P, Non-Reversing, Screw MPN:XTCE095F00T
Free Shipping
In Stock
The Eaton XT IEC contactor is a reliable and efficient solution for a variety of applications, including industrial automation and control systems. Its non-reversing action and 24V AC coil make it ideal for use in systems that require precise control and low voltage operation. The contactor's 95A amperage rating and IP20 ingress protection rating ensure reliable performance in harsh environments. Its compact design and DIN rail or panel mounting options make it easy to integrate into existing systems. Suitable for use in a range of industries, including manufacturing, oil and gas, and water treatment.
Top product features:
- IEC Magnetic Contactor is a non-reversing device
- Has a 24V AC coil voltage rating
- Has embedded surge suppressor protection
Top product applications:
- Industrial Control Systems
- Motor Control Circuits
- Automation and Control Panels
The Eaton XT IEC contactor is an IEC magnetic contactor (3-pole, non-reversing) with a 24 V AC coil. It uses screw terminals and has no auxiliary contacts. Part of the XT series (Frame F), it is rated within the specified current ranges. It bears applicable certification marks in accordance with standards and has IP20 ingress protection rating without an enclosure.
- Poles: 3
- - Action: Non-Reversing
- - Coil Voltage: 24V AC
- - Amperage Rating: 95A
- - Auxiliary Contacts: No
- - Contact Configuration: 0 NO, 0 NC
- - Electrical Connection: Screw
- - Frame/Series: XT
- Frame Size F
- - Certifications: UL Listed
- CSA Certified
- - IP Rating: IP20
- - Enclosure: No Enclosure
- - Mounting Style: DIN Rail, Panel
- - Reversing: No
- - Type: Full voltage non-reversing contactor
- - Embedded Surge Suppressor: Yes
- - Maximum Voltage Rating: 690V AC
Additional Information
- Country of Origin: RO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 4.00
- Package Height: 7.40
- Package Weight: 4.99
