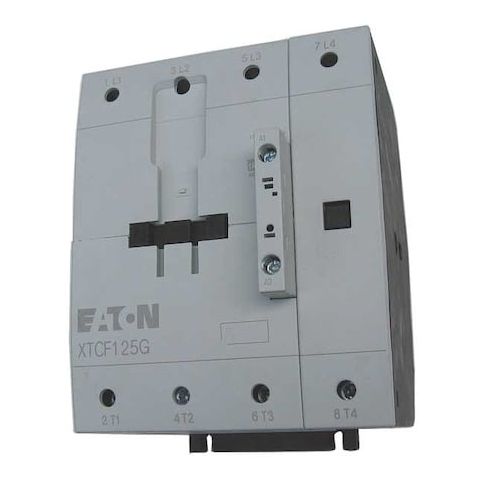

IEC Magnetic Contactor, No Auxiliary Contacts, 240V AC, 4 P, Non-Reversing, Screw MPN:XTCF125G00B
Free Shipping
In Stock
The Eaton XT IEC contactor is a reliable and efficient solution for a wide range of industrial and commercial applications. This 4-pole, non-reversing contactor is ideal for use in control circuits, motor starters, and other high-current applications. With its 240V AC coil and screw terminals, it provides a secure and easy-to-install connection. The contactor's embedded surge suppressor helps protect against electrical surges, ensuring a longer lifespan and reduced downtime. Suitable for use in harsh environments, the XT IEC contactor is CE marked, UL listed, and CSA certified, making it a trusted choice for applications in various industries, including manufacturing, oil and gas, and more.
Top product features:
- Has a 4-pole, non-reversing action
- Includes an embedded surge suppressor
- Features screw terminals for connections
Top product applications:
- Motor Control Circuits
- Automotive Systems
- Industrial Automation
The Eaton XT IEC contactor is an IEC magnetic contactor (an electrically operated switching device) rated for operation within the specified voltage and current ranges according to IEC standards. This 4-pole, non-reversing unit features a 240 V AC coil with screw terminals and does not include auxiliary contacts, and is associated with the XT series (Frame G) for mounting on DIN Rail or Panel.
Key features
- - Poles: 4
- Action: Non-Reversing
- Reversing: No
- - Coil voltage: 240 V AC
- - Amperage rating: 125 A (full-load resistive)
- 80 A (full-load inductive)
- - Auxiliary contacts: does not include auxiliary contacts
- - Includes an embedded surge suppressor (performance may vary depending on conditions)
- - Terminals: Screw
- - Mounting style: DIN Rail, Panel
- - Frame/Size: Frame G (Size G)
- - Maximum voltage: 690 V AC
- - Frequency: 50/60 Hz
- - IP rating: IP20
- - Enclosure: No Enclosure
- - Response times are as specified under test conditions
- actual performance may vary based on application parameters
- - Standards/ Certifications: UL Listed
- CSA Certified
- EN 60947
- IEC 60947
- CE Marked
- RoHS
- - Dimensions: Height 6.69 in
- Width 5.24 in
- Depth 6.89 in
- - Mounting hole diameter: 0.24 in
- Mounting hole distance (Height) 6.14 in
- Mounting hole distance (Width) 2.76 in
- - Operating temperature: -13°F to 122°F
- - Product name: Eaton XT IEC contactor
Additional Information
- Country of Origin: RO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 7.50
- Package Height: 9.50
- Package Weight: 6.50
