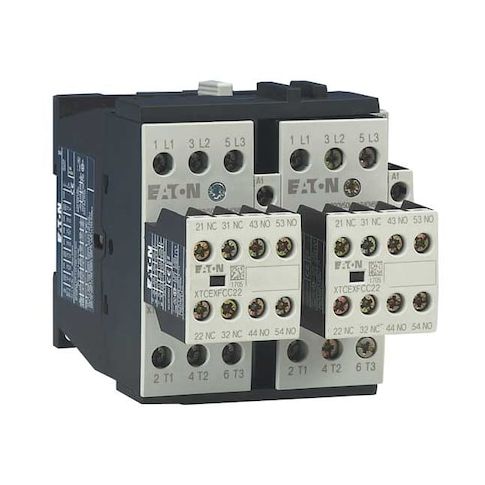

IEC Magnetic Contactor, 1NC/2NO, 240V AC, 3 P, Reversing, Screw MPN:XTCR032C21B
Free Shipping
In Stock
The Eaton XT IEC contactor is a reliable and versatile solution for switching applications within rated voltage and current ranges. Suitable for use in a variety of environments, this three-pole contactor is designed for reversing operation and features a 240V AC coil with a 32A amperage rating. With its screw terminals and embedded surge suppressor, it provides a safe and efficient connection. The contactor is ideal for use in industrial control panels, machinery, and equipment, offering benefits such as reduced energy consumption, extended equipment lifespan, and simplified maintenance. Its compact design and DIN rail mounting make it a convenient choice for space-constrained installations.
Top product features:
- Reversing operation within specified parameters
- Three-pole configuration with 2NO/1NC auxiliary contacts
- Embedded surge suppressor for electrical protection
Top product applications:
- Motor control applications
- Industrial control systems
- High-inrush load switching
The Eaton XT IEC contactor is a three-pole, rated for reversing operation within specified parameters IEC magnetic contactor with a 240 V AC coil and a 32 A amperage rating. It uses screw terminals and is equipped with auxiliary contacts conforming to standard configurations. The unit is listed without an enclosure
- suitable for use in appropriate environments and is part of the XT series, carrying multiple standards and certifications (UL Listed
- IEC 60947
- EN 60947
- CSA Certified
- CE Marked
- RoHS).
- Action: Rated for reversing operation within specified parameters
- - Poles: 3
- - Amperage Rating: Rated for a maximum current of 32A as specified
- - Coil Voltage: 240V AC
- - Aux. Contact Configuration: 2NO/1NC
- - Auxiliary Contact Form: 1NC/2NO
- - Embedded Surge Suppressor: Yes
- - Electrical Connection: Screw Terminals
- - Enclosure NEMA Rating: Listed without an enclosure
- suitable for use in appropriate environments
- - Frame Size: C
- - Frame / Series: Frame C
- XT
- - Frequency: 50/60 Hz
- - IP Rating: IP20
- - Mounting Style: DIN Rail, Panel
- - Mounting Hole Diameter: 0.16 in
- - Mounting Hole Distances: Height 2.95 in
- Width 1.77 in
- - Includes Auxiliary Contacts: Yes
- - Number of Auxillary Contacts: 4
- - Number of Poles: 3
- - Type: Designed for switching applications within rated voltage and current ranges
- - Series: XT
- - Terminal Connection Type: Screw
- - Dimensions (Overall): 7.5 in W x 4.5 in H x 4.75 in D
- - Certifications: UL Listed
- IEC 60947
- EN 60947
- CSA Certified
- - Standards: CE Marked
- RoHS
- UL Listed
- IEC 60947
- EN 60947
- CSA Certified
- - Product Name: Eaton XT IEC contactor
Additional Information
- Country of Origin: RO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.90
- Package Width: 5.20
- Package Height: 7.20
- Package Weight: 2.60
