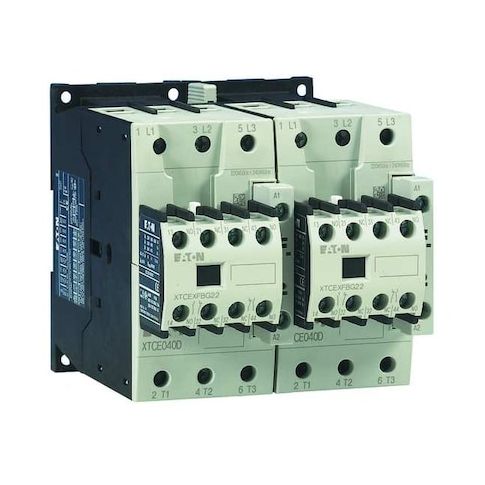

IEC Magnetic Contactor, 1NC/1NO, 480V AC, 3 P, Reversing, Screw MPN:XTCR050D11C

• The Eaton XT IEC contactor features a frame D design, three poles, and auxiliary contacts (1 normally open / 1 normally closed)

• compatible with coils rated at 480 V AC within the specified operational parameters. Rated for operation at up to 50 A according to manufacturer specifications. The device includes an embedded surge suppressor
• it is rated for use in environments with protected conditions as specified by its IP20 rating. Suitable for mounting on DIN Rail or panels as per installation guidelines
• part of the XT series product line.

  Key features

• - Action: Reversing
• - Poles: 3
• - Coil voltage: 480 V AC
• - Amperage rating: 50 A
• - Aux contacts: 2 (1NO/1NC)
• - Auxiliary contact form: 1NC/1NO
• - Embedded surge suppressor: Yes
• - Enclosure: No Enclosure
• - IP rating: IP20
• - Frame/Series: Frame D, XT
• - Mounting style: DIN Rail, Panel
• - Terminal connection: Screw
• - Certifications: CSA Certified
• IEC 60947
• EN 60947
• UL Listed
• CE Marked
• RoHS
• - Frequency: 50/60 Hz
• - Operating temperature: Max 122°F, Min -13°F
• - Dimensional notes: Depth 5.79 in
• Mounting hole diameter 0.16 in
• Mounting hole distance (Height) 4.13 in
• Mounting hole distance (Width) 1.77 in
