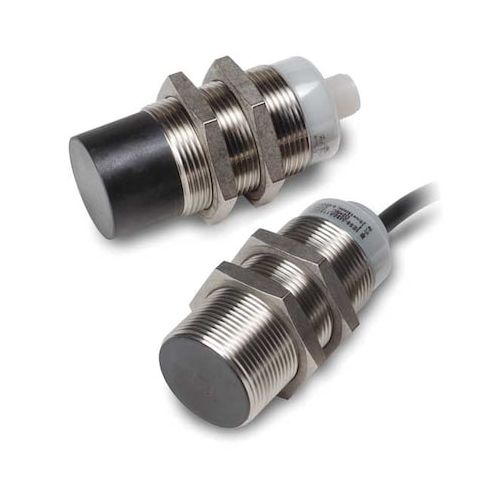

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded MPN:E59-M30C129C02-D1
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded
This cylindrical inductive proximity sensor from Eaton is a reliable and versatile solution for detecting objects in a range of environments. With a stainless steel housing and IP67 and IP69K ratings, it can withstand harsh conditions and withstand exposure to water and dust. The sensor's programmable output circuit and 145 Hz operating frequency make it suitable for a variety of applications, including industrial automation, material handling, and packaging. Its compact size and 2m cable length make it easy to integrate into existing systems, while its 6-48V DC power requirement and 300mA current load ensure efficient operation.
Top product features:
- Cylindrical shape allows for versatile mounting options
- Inductive technology enables non-contact detection of metal objects
- Operating frequency of 145 Hz allows for reliable detection of objects up to 29 mm away
Top product applications:
- Industrial Automation
- Automotive Manufacturing
- Material Handling Equipment
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 6 to 48V DC, Unshielded, Proximity Sensor Operating Frequency 145 Hz, Proximity Sensor Output Circuit Type Programmable, Max. Detecting Distance 29 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material Stainless Steel, Length 69 mm, Operating Temp. Range -40 Degrees to 158 Degrees F, Max. Current Load 300mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 5.10
- Package Height: 2.00
- Package Weight: 0.55
Product info last updated on January 15, 2026 6:11am UTC
Category: Industrial Electrical Controls and Automation
