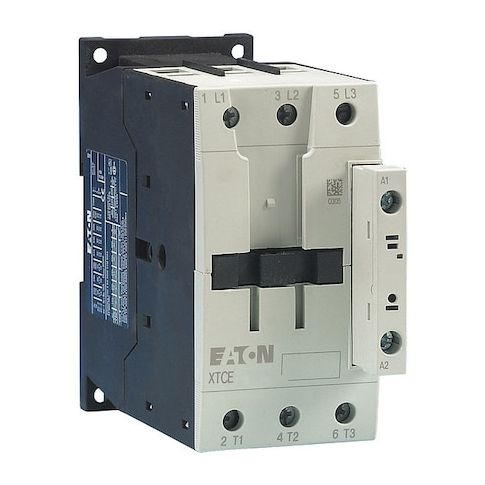

IEC Magnetic Contactor, No Auxiliary Contacts, 24V AC, 3 P, Non-Reversing, Screw MPN:XTCE050D00T
Free Shipping
In Stock
The Eaton XT IEC contactor is a versatile and reliable switching device designed for a wide range of applications. Suitable for mounting on DIN rails or panels, this 3-pole, non-reversing contactor is ideal for use in control circuits, motor control, and power distribution systems. With a 24V AC coil and 50A amperage rating, it can handle high current loads while providing efficient and safe operation. Its compact design and IP20 rating make it perfect for use in industrial and commercial settings, including manufacturing, HVAC, and power generation systems. Its reliability and durability ensure long-lasting performance.
Top product features:
- The Eaton XT IEC contactor is a 3-pole, non-reversing unit.
- It has a 24 V AC coil rated for 50 A.
- It has a screw terminal connection.
Top product applications:
- Power Distribution Systems
- Industrial Automation Systems
- Control Panels
The Eaton XT IEC contactor is an IEC magnetic contactor (electrically operated switching device) rated for operation within the specified parameters. It is a 3-pole, non-reversing unit with a 24 V AC coil, rated for 50 A, and it has no auxiliary contacts. Part of the XT series with frame size D, it is suitable for mounting on DIN rails or panels and does not include an enclosure.
- Action: Non-Reversing
- - Amperage rating: 50A
- - Poles: 3
- - Frame/Series: XT, Frame D
- - Coil voltage: 24V AC
- - Auxiliary contacts: No auxiliary contacts
- - Mounting style: DIN Rail, Panel
- - Enclosure: No enclosure
- - IP rating: IP20
- - Terminal connection: Screw
- - Certifications: UL Listed
- CSA Certified
- IEC 60947
- EN 60947
- RoHS
- CE Marked
- - Maximum voltage rating: 690V AC
- - Mechanical durability: 10,000,000 cycles
- - Electrical durability: 300 (AC-4 400V Ie), 800 (AC-1 400V Ie), 800 (AC-3 400V Ie)
- - Dimensions: Width 2.17 in
- Height 4.09 in
- Depth 5.2 in
- - Operating temperature: Max 122°F
- Min -13°F
- - Frequency rating: 50/60 Hz
- - Reversing: No
- - Product name: Eaton XT IEC contactor
Additional Information
- Country of Origin: RO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 2.30
- Package Height: 5.70
- Package Weight: 2.05
