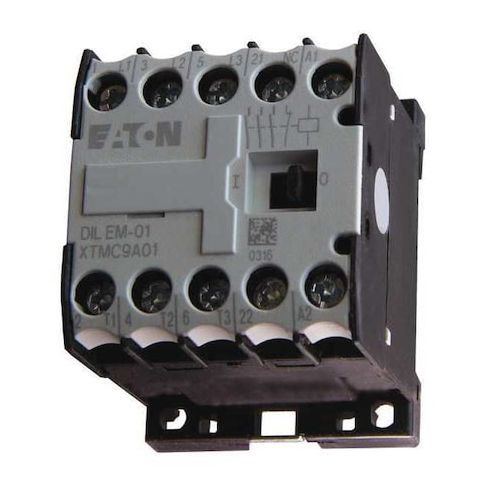

IEC Miniature Magnetic Contactor, 1NC, 208V AC, 3 P, Non-Reversing, Screw MPN:XTMC9A01E

• The IEC Miniature Magnetic Contactor is a compact, electrically operated switch used to control lower-power circuits in accordance with IEC standards. It is a 3-pole device with a 208 V AC coil, rated for non-reversing operation within specified parameters and screw terminal connections. The unit includes one 1NC auxiliary contact

• compatible with Frame A (XT series)
• suitable for DIN rail or panel mounting
• no enclosure provided.

  - Coil Voltage: 208 V AC

• Phase: Three
• Frequency: 60 Hz
• rated for operation up to 690 V AC/DC in accordance with specifications
• - Poles: 3
• Auxiliary Contacts: Yes
• Number of Aux Contacts: 1
• Auxiliary Contact Configuration/Form: 1NC
• - Action: Non-Reversing
• Reversing: No
• - Frame: Frame A
• Series: XT
• - Mounting Style: DIN Rail, Panel
• Mounting Position: Vertical
• Terminal Connection Type: Screw
• - Enclosure: No Enclosure
• IP Rating: IP20
• - Full Load Amps: rated for inductive load of 9 A and resistive load of 20 A within specified conditions
• - Temperature: Temperature Range: designed to operate within the specified temperature ranges of up to 122°F and down to -13°F
• - Dimensions (W x H x D): 1.77 in x 2.28 in x 3.27 in
• - Embedded Surge Suppressor: equipped with a surge suppressor that meets applicable standards
• - Standards: CCC, CSA, EN/IEC 60947, UL Listed, VDE 0660
• - Mechanical Durability: 10000000 cycles
