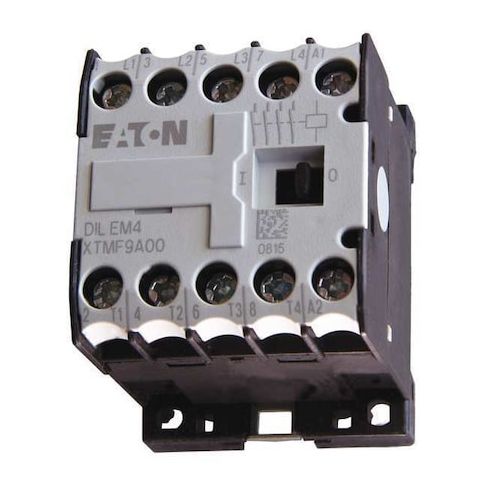

IEC Miniature Magnetic Contactor, No Auxiliary Contacts, 240V AC, 4 P, Non-Reversing, Screw MPN:XTMF9A00B

• The Eaton XT IEC Miniature Magnetic Contactor is a compact, 4-pole, non-reversing magnetic switch operated by a 240 V AC coil. It features screw terminals and an embedded surge suppressor, with no auxiliary contacts. Suitable for DIN-rail or panel mounting applications, it is rated for operation within the specified voltage ranges (up to 690V AC/DC) and carries multiple certifications (CE Marked

• CSA Certified
• EN 60947
• IEC 60947
• RoHS
• UL Listed). Enclosure: listed as "No Enclosure" with an IP20 protection rating.

  - Coil Voltage: 240 V AC

• - Action: Non-Reversing
• - Number of Poles: 4
• - Auxiliary Contacts: None (0 NO/0 NC)
• - Contact Configuration: 0 NO, 0 NC
• - Electrical Connection: Screw Terminals
• - Embedded Surge Suppressor: Yes
• - Enclosure: listed as "No Enclosure"
• - IP Rating: IP20
• - Mounting Style: DIN Rail, Panel
• - Frame/Series/Code: XT / Frame A
• - Standards: CE Marked
• CSA Certified
• EN 60947
• IEC 60947
• RoHS
• UL Listed
• - Maximum Voltage Rating: 690V AC/DC
• - Frequency: 50/60 Hz
• - Phase: Three
• - Type: Full voltage non-reversing mini contactor
• - Width: 2.5 in
• Height: 2 in
• Depth: 2.5 in
• - Connection Type: Screw
• - Reversing Capability: No
• - Product Name: Eaton XT IEC mini contactor
