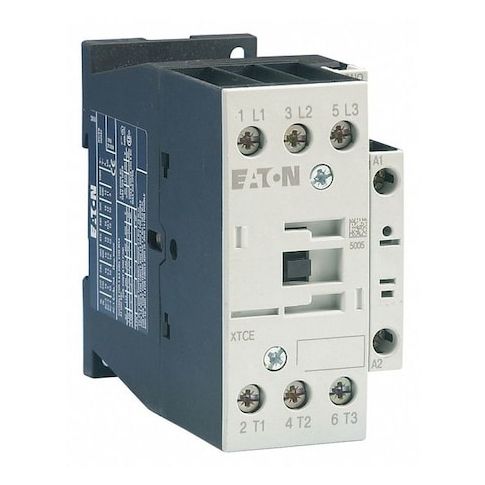

IEC Magnetic Contactor, 1NC, 24V AC, 3 P, Non-Reversing, Screw MPN:XTCE032C01T

• The EATON - IEC Magnetic Contactor is a non-reversing, full voltage contactor intended for use in industrial and commercial settings. It utilizes a coil voltage of 24V AC and has an amperage rating that allows operation up to a maximum of 32A. The contactor features screw terminals for electrical connection and is designed to allow mounting on either DIN Rail or Panel. With its Frame C size, it is compatible with various power ratings ranging from 3 hp to 25 hp, dependent upon the phase and voltage level. This product complies with multiple standards including EN60947, UL Listed, IEC60947, CSA Certified

• compliance does not guarantee performance outcomes.

  Key Features:

• - Non-Reversing action: The contactor does not have reversing capability.
• - Amperage Rating: Has an amperage rating that allows operation up to a maximum of 32A.
• - Coil Voltage: Utilizes a coil which operates at an input of 24V AC.
• - Electrical Connection: Uses screw terminals for secure electrical connections.
• - Mounting Style: Designed for installation using either DIN Rail or Panel mounting methods.
• - Horsepower Ratings: Compatible with devices that operate within the range of power between 3hp-25hp, contingent upon specific phase and voltage levels.
• - Standards Compliance: Complies with multiple industry standards including EN60947, UL Listed, IEC60947, CSA Certified
• compliance does not guarantee performance outcomes.
