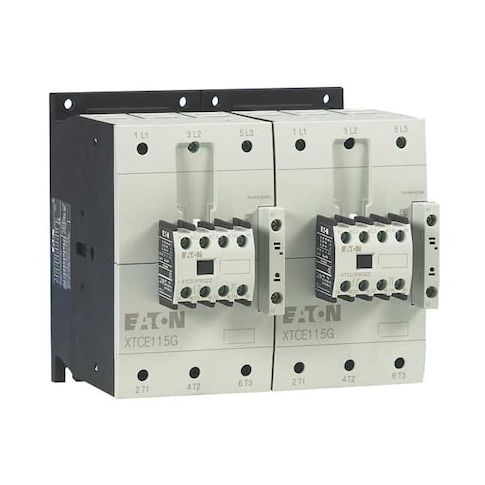

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Reversing, Screw MPN:XTCR115G11T
Free Shipping
In Stock
The Eaton IEC Magnetic Contactor is a reliable and efficient solution for controlling motor direction in various applications. With its 3-pole design and 24V AC coil, it can handle heavy loads and switch motor direction as needed. Suitable for use in environments with IP20 ratings, this contactor is ideal for industrial settings, such as manufacturing, HVAC, and food processing. Its compact design and screw terminals make it easy to install and integrate into existing systems. By using this contactor, you can improve motor control, reduce energy consumption, and increase overall system efficiency.
Top product features:
- Switches motor direction as per its design specifications
- Capable of switching 115 A inductive or 160 A resistive loads
- Includes an integrated surge suppression component
Top product applications:
- Motor control systems
- Reversing applications where motor direction needs to be switched
- Three-phase power distribution systems
The Eaton IEC Magnetic Contactor is a 3-pole, rated as a reversing contactor according to applicable standards. It uses a 24 V AC coil with screw terminals, belongs to the IEC/contactor family (Frame G, XT series), and is configured for DIN Rail or Panel mounting
- intended for environments compatible with IP20 ratings
- suitable enclosure options should be considered based on application requirements.
Key features
- - Action: Reversing
- capable of switching motor direction as per its design specifications
- - Coil voltage: 24 V AC
- - Poles / frame: 3 poles
- Frame G (XT series)
- - Auxiliary contacts: 2 total (1NO/1NC)
- - Embedded surge suppressor: includes an integrated surge suppression component (if applicable)
- - Enclosure/IP: Intended for use in environments compatible with IP20 ratings
- suitable enclosure options should be considered based on application requirements
- - Mounting: DIN Rail, Panel
- - Terminal connection: Screw
- - Frequency / phase: 50/60 Hz
- Three-phase
- - Full load amps: Inductive 115 A
- Resistive 160 A
- - HP ratings vary by voltage/phase (e.g., 10 hp @ 120 V, 25 hp @ 230/240 V, up to 100 hp @ higher voltages)
- - Standards: CE, CSA, EN/IEC 60947, RoHS, UL Listed
- - Dimensions (approx.): Overall Height 12.8 in
- Overall Width 7.72 in
- Overall Depth 7.24 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 11.10
- Package Height: 7.90
- Package Weight: 14.89
